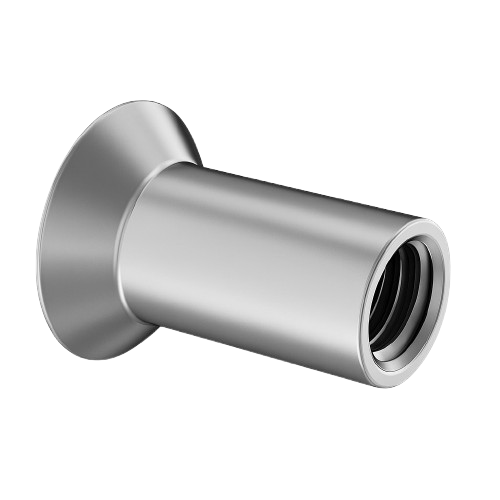

Anchor Binder Post Stainless Steel 1/4-20 * 3/8" [Philips Drive]

Anchor Binder Post Stainless Steel 1/4-20 * 3/8" [Philips Drive]

$1.00
$1.00
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Angled under the head for a flush finish in countersunk holes. Made from 304 stainless steel these screws are chemical resistant and may be mildly magnetic. Barrel length and screw length are measured from under the head.


View full details

Specifications
Product Number ABIS-01003
Material 304 Stainless Steel
Thread Size 1/4"-20
Length 3/8"
For Material Thickness 1" to 1 1/8"

Barrel
Length 1/4"
Diameter 3/8"
Head Diameter 3/4"
Head Height 15/64"
Thread Depth 3/16"
Drive Size 7/32"
Drive Style Hex

Screw
Length 7/16"
Head Diameter 3/4"
Head Height 15/64"
Drive Size 7/32"
Drive Style Hex
Countersink Angle 82°
Threading Fully Threaded
Tensile Strength Not Rated
Hardness Rockwell B80
Screw Size Decimal Equivalent 0.250"
Thread Type UNC
Thread Spacing Coarse
Thread Direction Right Hand
Head Type Flat
Flat Head Profile Standard
System of Measurement Inch
Includes Barrel, Screw
REACH REACH (EC 1907/2006) (07/16/2019, 201 SVHC) Compliant
RoHS RoHS 3 (2015/863/EU) compliant
