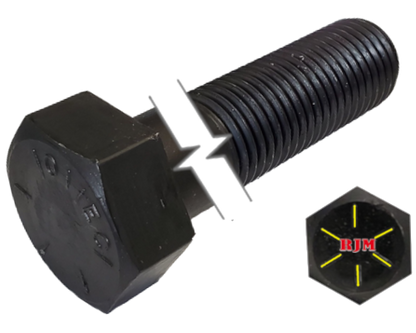

Imperial Hexagonal Bolt Partial Thread Plain Alloy Steel 5/16-18 * 2" Grade 8

Imperial Hexagonal Bolt Partial Thread Plain Alloy Steel 5/16-18 * 2" Grade 8

Regular price $1.00
Regular price Sale price $1.00
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

This hexagonal bolt has a length of 2 with a threading of 5/16-18 [Partially Threaded]. It is made of yellow zinc plated and thus provide medium resistance to corrosion in dry environments and low resistance in wet environments, but Yellow Zinc provide a higher corrosion resistance than regular zinc.

The Grade 8 increases its strength against the pressure and has a tensile strength and hardness of 150,000 psi | Rockwell C33. Furthermore, it features a shear strength of 90,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ASME B19.2.1 | SAE J429 and comply with dimensional standards.

View full details

Specifications

Product Number B8-02020-N
Nominal Diameter 5/16-18
Length 2"
Material and/or Plating Plain Alloy Steel
System of Measurement Imperial

Thread Specifications

Threading Partially Threaded
Type UNC | Coarse
Direction Right Hand
Size 5/16-18
Min. Length 7/8"
Fit Class 5g6g

Head Specification

Type Hexagonal
Profile Standard
Width 1/2"
Height 7/32"
Drive Style External Hex

Strength Specifications

Strength Grade/Class Grade 8
Tensile Strength | Hardness 150,000 psi | Rockwell C33
Shear Strength 90,000 psi
Classification ASME B19.2.1 | SAE J429
