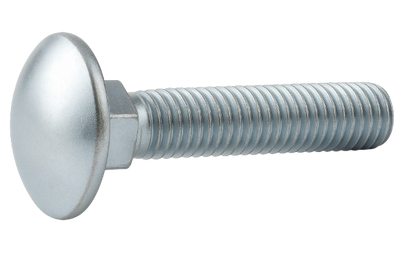

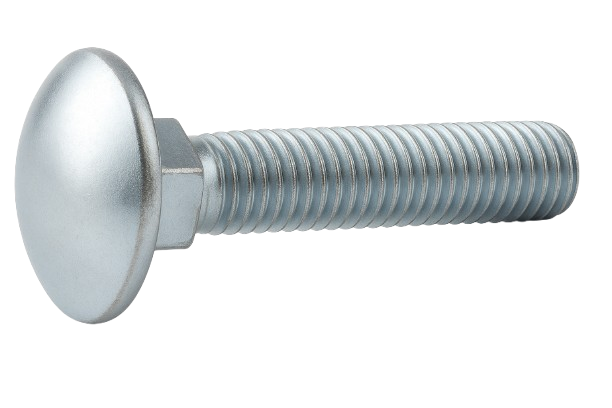

Imperial Carriage Bolt Dome Head Full Thread Zinc Plated 3/8-16 * 1-1/2" Grade 5

Imperial Carriage Bolt Dome Head Full Thread Zinc Plated 3/8-16 * 1-1/2" Grade 5

Regular price $2.00
Regular price Sale price $2.00
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

This carriage | dome bolt has a length of 2" with a threading of 10-24 [Fully Threaded]. It is made of zinc plated and thus provide medium resistance to corrosion in both dry and wet environments.

The Grade 5 increases its strength against the pressure and has a tensile strength and hardness of 60,000 psi | Rockwell B69.8. Furthermore, it features a shear strength of 36,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ASME B18.5 | SAE J429 and comply with dimensional standards.

View full details

Specifications

Product Number BC5-03015
Nominal Diameter 3/8-16
Length 1-1/2"
Material and/or Plating Zinc Plated
System of Measurement Imperial

Thread Specifications

Threading Fully Threaded
Type UNC | Coarse
Direction Right Hand
Size 3/8-16
Shank Length 1-3/4
Fit Class 5g6g

Head Specification

Type Carriage | Dome
Profile Standard
Diameter 27/32"
Height 9/32"
Drive Style None

Neck Specifications

Form Square
Width 25/64"
Height 7/32"

Strength Specifications

Strength Grade/Class Grade 5
Tensile Strength | Hardness 120,000 psi | Rockwell C25
Shear Strength 72,000 psi
Classification ASME B18.5 | SAE J429
