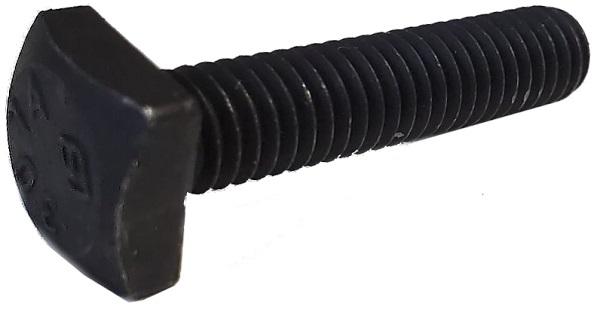

Square Head Bolt Full Thread Black Steel 3/8-16 * 3/4"

Square Head Bolt Full Thread Black Steel 3/8-16 * 3/4"

Regular price $1.00
Regular price Sale price $1.00
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

These bolts can be used for light duty fastening applications, such as securing access panels. Large flat sides make them easy to grip with a wrench and keep them from rotating in square holes. Material meets ASTM A307 specifications for quality. Length is measured from under the head. The bolts have a thread of 3/8-16 and a length of 3/4.

View full details

Specifications

Product Number BCAT-03007
Head Type Square
Drive Style External Square
System of Measurement Inch
Thread Direction Right Hand
Thread Size 3/8"-16
Screw Size Decimal Equivalent 0.375"
Thread Type UNC
Thread Fit Class 2A
Length 3/4"
Threading Fully Threaded
Thread Spacing Coarse

Head

Width 9/16"
Height 1/4"
Fastener Strength Grade/Class Grade A
Material Black Steel
Tensile Strength 60,000 psi
Hardness Rockwell B69
Specifications Met ASTM A307
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
