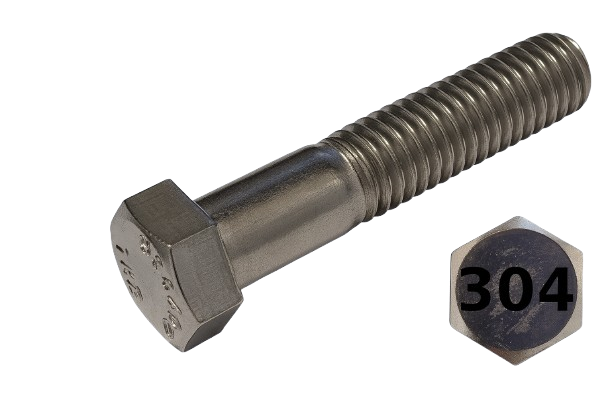

Imperial Hexagonal Bolt Fine And Partial Thread 304 Stainless Steel 9/16-12 * 3"

Imperial Hexagonal Bolt Fine And Partial Thread 304 Stainless Steel 9/16-12 * 3"

$6.00
$6.00
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

This hexagonal bolt has a length of 3" with a threading of 9/16-12 [Partially Threaded]. It is made of 304 stainless steel, provides high resistance to corrosion in dry and wet environments.

The 304 Stainless Steel increases its strength against the pressure and has a tensile strength and hardness of 75,000 psi | Rockwell B79. Furthermore, it features a shear strength of 45,000 psi.

UNF | Fine threads are an industry standard. These bolts are classified as ASME B19.2.1 | SAE J429 and comply with dimensional standards.

View full details

Specifications
Product Number BSF-06030
Nominal Diameter 9/16-18
Length 3"
Material and/or Plating 304 Stainless Steel
System of Measurement Imperial

Thread Specifications
Threading Partially Threaded
Type UNF | Fine
Direction Right Hand
Size 9/16-18
Shank Length 1-3/4
Shank Length 1-3/4
Min. Length 1-3/8"
Fit Class 5g6g

Head Specification
Type Hexagonal
Profile Standard
Width 13/16"
Height 23/64"
Drive Style External Hex

Strength Specifications
Tensile Strength | Hardness 75,000 psi | Rockwell B79
Shear Strength 45,000 psi
Classification ASME B19.2.1 | SAE J429
