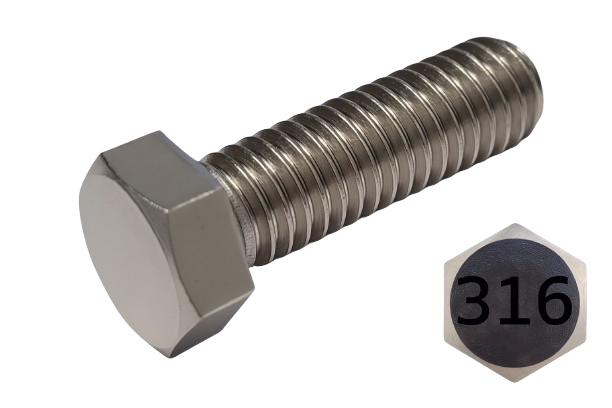

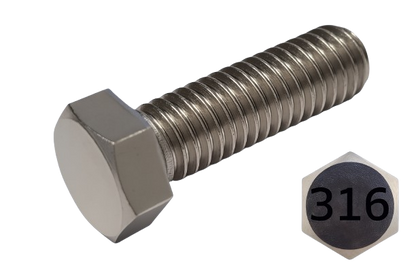

Imperial Hexagonal Bolt Full Thread 316 Stainless Steel 5/8-11 * 1-1/2"

Imperial Hexagonal Bolt Full Thread 316 Stainless Steel 5/8-11 * 1-1/2"

$4.00
$4.00
Sale Sold out
Shipping calculated at checkout.
Quantity
Download



This hexagonal bolt has a length of 1-1/2" with a threading of 5/8-11 [Fully Threaded]. It is made of 304 stainless steel, provides high resistance to corrosion in dry and wet environments.

The 316 Stainless Steel increases its strength against the pressure and has a tensile strength and hardness of 75,000 psi | Rockwell B79. Furthermore, it features a shear strength of 45,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ASME B19.2.1 | SAE J429 and comply with dimensional standards.

View full details

Specifications
Product Number BST3-07015
Nominal Diameter 5/8-11
Length 1-1/2"
Material and/or Plating 316 Stainless Steel
System of Measurement Imperial

Thread Specifications
Threading Fully Threaded
Type UNC | Coarse
Direction Right Hand
Size 5/8-11
Shank Length 1-3/4
Fit Class 5g6g

Head Specification
Type Hexagonal
Profile Standard
Width 15/16"
Height 13/32"
Drive Style External Hex

Strength Specifications
Tensile Strength | Hardness 75,000 psi | Rockwell B79
Shear Strength 45,000 psi
Classification ASME B19.2.1 | SAE J429
