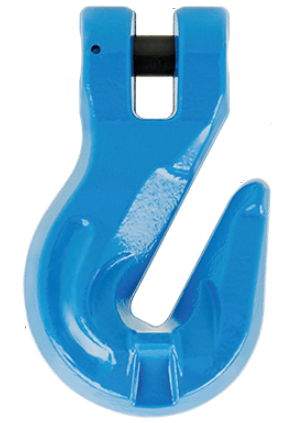

Grab Hook With Clevis Blue Painted Alloy Steel 5/8 Grade 100

Grab Hook With Clevis Blue Painted Alloy Steel 5/8 Grade 100

$118.00
$118.00
Sale Sold out
Quantity
Download

Price may change with quantity see chart under PROMOTIONS


Pop the clevis pin in to install these hooks, no extra fittings needed. Then, slide your chain into the opening of the hook—it has a narrow throat that's precisely sized to grip a single link.

Match your hook's grade to your chain's grade. The higher the grade, the stronger the hook. For the three grades that we offer (80, 100, and 120), each grade is about 20% stronger than the last.

Note: Capacities are for vertical lifting only.

View full details

Specifications
Product Number CRO-07100-F
Application For Lifting
Grade 100
Material Alloy Steel
Finish Powder Coated
For Chain Trade Size 5/8
Capacity 22,600 lbs.

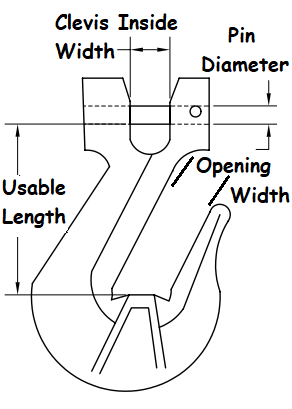

Hook
Opening Width 3/4"
Usable Length 4 9/16"
Pin Diameter 3/4"
Clevis Inside Width 13/16"
Color Blue
Fabrication Forged
Maximum Temperature 300° F
Specifications Met ASME B30.10
For Use With Chain
Attachment Type Clevis
RoHS Not Compliant
REACH Not Compliant
