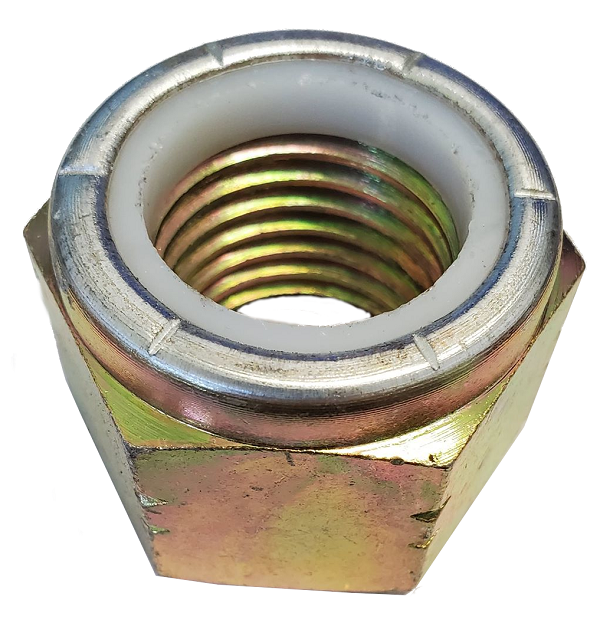

Hexagonal Nut Nylon Insert Yellow Zinc Plated 5/16-18 Grade 8

Hexagonal Nut Nylon Insert Yellow Zinc Plated 5/16-18 Grade 8

$1.00
$1.00 $1.00
Sale Sold out
Shipping calculated at checkout.
Quantity
Download



A nyloninsert grips the bolt to resist loosening without damaging threads. These nuts are reusable, but their holding power lessens with each use. Made from Grade 8 steel, they'reabout 25%stronger than medium-strength steel locknuts. The nuts have a 5/16-18 thread.

White Nylon locknuts resist corrosion in wet environments.




View full details

Specifications
Product Number E8Y-02000
Material Nylon 6/6 Plastic
Fastener Strength Grade/Class Grade 8
Thread Size 5/16"-18
Thread Type UNC
Thread Spacing Coarse
Thread Fit Class 2B
Thread Direction Right Hand
Width 1/2"
Height 11/32"
Insert Maximum Temperature 220° F
Drive Style External Hex
Nut Type Locknut
Hex Nut Profile Standard
Locking Type Nylon Insert
System of Measurement Inch
RoHS Not Compliant
