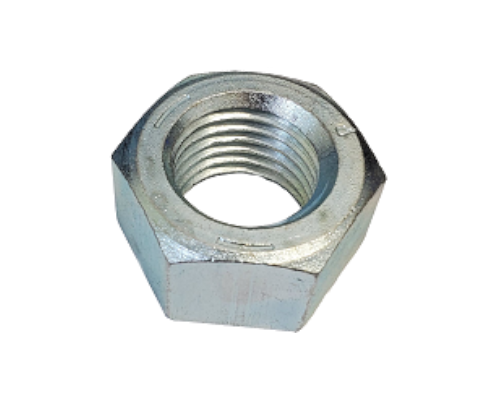

Imperial Hexagonal Nut zinc Plated Fine Thread 9/16-18 Grade 5

Imperial Hexagonal Nut zinc Plated Fine Thread 9/16-18 Grade 5

Regular price $1.00
Regular price $1.00 Sale price $1.00
Sale Sold out
Shipping calculated at checkout.
Quantity
Download



This hexagonal nut fit a threading of 9/16-18. It is made of zinc plated and thus provide medium resistance to corrosion in both dry and wet environments.

The Grade 5 increases its strength against the pressure and has a tensile strength and hardness of 120,000 psi | Rockwell C25. Furthermore, it features a shear strength of 72,000 psi.

UNF | Fine threads are an industry standard. These nuts are classified as ASME B18.2.2 and comply with dimensional standards.

View full details

Specifications

Product Number EF5-06000
Nominal Diameter 9/16-18
Material and/or Plating Zinc Plated
System of Measurement Imperial

Thread Specifications

Type UNF | Fine
Direction Right Hand
Size 9/16-18
Fit Class 5g6g

Nut Specification

Type Hexagonal
Profile Standard
Diameter 7/8"
Height 31/64"
Drive Style External Hex

Strength Specifications

Strength Grade/Class Grade 5
Tensile Strength | Hardness 120,000 psi | Rockwell C25
Shear Strength 72,000 psi
Classification ASME B18.2.2
