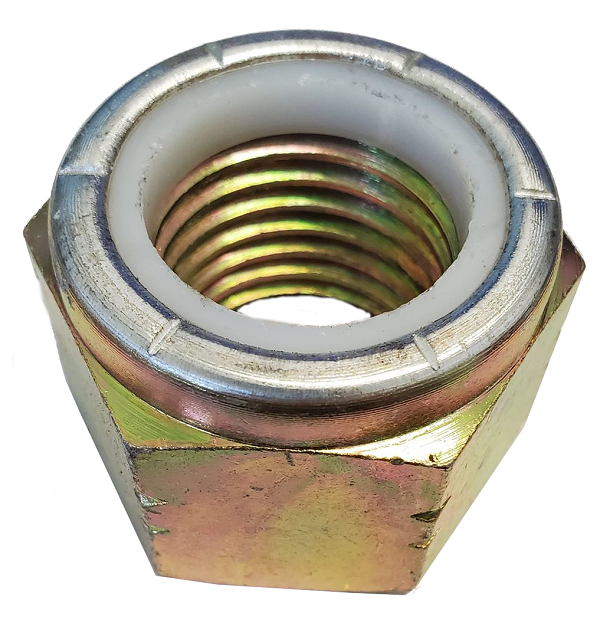

Hexagonal Nut Nylon Insert Fine Thread Yellow Zinc Plated 7/16-20 Grade 8

Hexagonal Nut Nylon Insert Fine Thread Yellow Zinc Plated 7/16-20 Grade 8

$1.00
$1.00 $1.00
Sale Sold out
Shipping calculated at checkout.
Quantity
Download



A nyloninsert grips the bolt to resist loosening without damaging threads. These nuts are reusable, but their holding power lessens with each use. Made from Grade 8 steel, they'reabout 25%stronger than medium-strength steel locknuts. The nuts are colored yellow.

White Nylon locknuts resist corrosion in wet environments.




View full details

Specifications
Product Number EF8Y-04000
Material Steel
Finish Zinc Yellow-Chromate Plated
Fastener Strength Grade/Class Grade 8
Thread Size 7/16"-20
Thread Type UNF
Thread Spacing Fine
Thread Fit Class 2B
Thread Direction Right Hand
Width 5/8"
Height 29/64"
Insert Maximum Temperature 220° F
Drive Style External Hex
Nut Type Locknut
Hex Nut Profile Standard
Locking Type Nylon Insert
System of Measurement Inch
RoHS Not Compliant
