Low Pressure Threaded Elbow Pipe Fitting 316 Stainless Steel 2-11-1/2 * 90° [Male x Female NPT]

Low Pressure Threaded Elbow Pipe Fitting 316 Stainless Steel 2-11-1/2 * 90° [Male x Female NPT]

$81.00
$81.00
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Price may change with quantity see chart under PROMOTIONS


Also known as Class 150 fittings, they are built for use in low-pressure applications. They adhere to high-quality standards for heat treating, material thickness, and marking.

316 stainless steel fittings have excellent corrosion resistance.

Female × male 90° elbow adapters are also known as street elbows.

View full details

Specifications
Product Number MCOUDES3-20090-FNPT
For Use With Air, Natural Gas, Oil, Steam, Water
Shape 90° Elbow
Type Adapter
Material 316 Stainless Steel
Class 150
Fabrication Heat Treated
Connection Type Pipe
Connection Style Threaded
Connection NPT Female × NPT Male
Pipe Size 2

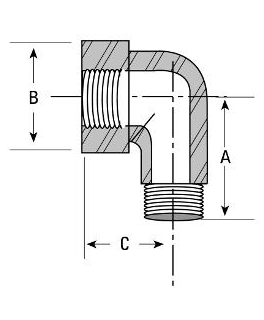

Height (A) 3-5/16
Height (B) 3-5/16
Length (C) 2-1/2
Maximum Pressure 150 psi @ 72° F
Maximum Steam Pressure 150 psi @ 360° F

For Pipe
Schedule 40
Material 316 Stainless Steel

For Flange
Class 150
Material 316 Stainless Steel
Specifications Met ANSI/MSS SP-114, ASTM A351
Features PTFE Thread Sealant
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (01/16/2020, 205 SVHC) Compliant
