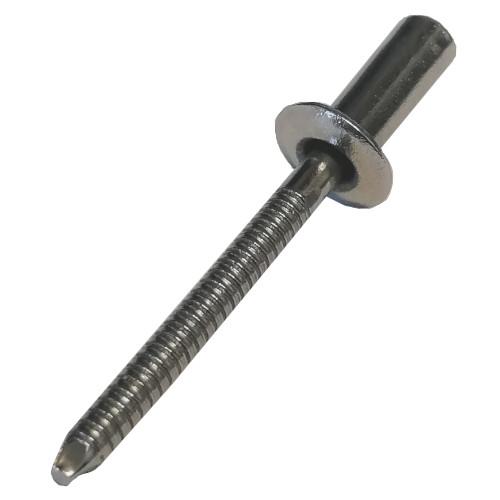

Pop Rivet Closed-end Domed Stainless Steel/Stainless Steel 3/16" * 1/2" [GRIP : 1/4" to 3/8" | DRILL : #11]

Pop Rivet Closed-end Domed Stainless Steel/Stainless Steel 3/16" * 1/2" [GRIP : 1/4" to 3/8" | DRILL : #11]

Regular price $1.00
Regular price Sale price $1.00
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

These blind rivets create a strong hold even in wet and damp areas. The domed head gives your project a finished appearance.

Use these blind rivets to fasten hinges, shelves, or other assemblies where you can only access one side. You can also use them to join materials that are difficult to weld or solder. The back of the rivet deforms during installation, so it creates a permanent hold that won't loosen from vibration. It also means you can't overtighten or strip them.

To install these rivets, you’ll need a blind rivet tool (sold separately). Be sure to pick a tool that’s compatible with your rivet’s diameter and material..

Those that meet IFI 114 comply with industry standards.

View full details

Specifications

Product Number RIFE-00805-SS
Rivet Type Blind [Pop Rivet] | Closed-end
Mandrel Diameter 3/16"
Length 1/2"
Mandrel Material Stainless Steel
Mandrel Plating/Color Plain
Rod Material Stainless Steel
Rod Plating/Color Plain
For Material Thickness 1/4" to 3/8"
For Drill Bit Size No. 11
For Hole Size 0.192"-0.196"
Head Type Domed
Head Size Standard
Head Diameter 0.375"
Head Height 0.08"
Shear Strength 950 lbs.
Tensile Strength 1,200 lbs.
Specifications Met IFI 114 Standards
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
DFARS Specialty Metals COTS-Exempt
