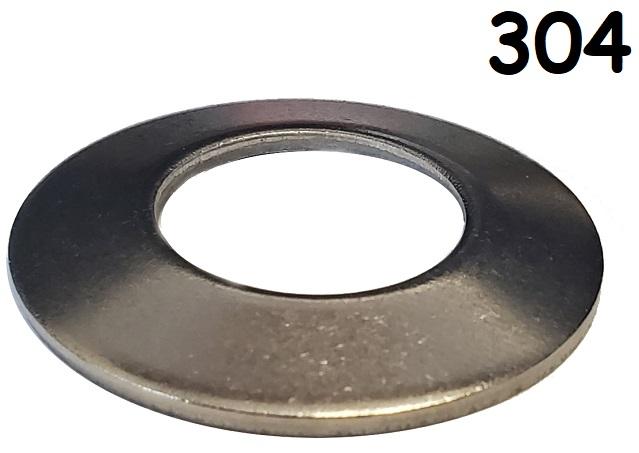

Belleville Disc Spring 304 Stainless Steel 5/16 * 9/16 OD

Belleville Disc Spring 304 Stainless Steel 5/16 * 9/16 OD

Regular price $1.00
Regular price Sale price $1.00
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Price may change with quantity see chart under PROMOTIONS


Made of stainless steel, these springs are more corrosion resistant than steel springs. Use them on shafts, bolts, and the ends of valves to maintain tension and separate components. Unlike Belleville washers, they return to their original height once the load is removed.

Deflection is the distance a spring compresses under load. Flat load is the load at which the spring is completely compressed.

Springs may be stacked to increase working load and deflection. In a nested stack, working load is multiplied by the number of springs used, while deflection remains unchanged. In an inverted stack, deflection is multiplied by the number of springs used, while the working load remains unchanged. In a nested and inverted stack, both load and deflection are increased.

View full details

Specifications

Product Number RSBEL-02005A
Spring Type Disc
Disc Spring Type Belleville
System of Measurement Inch
For Shaft Diameter 5/16"
ID 0.328"
OD 9/16"
Thickness 0.041"
Height 0.081"
Deflection @ Working Load 0.016"
Working Load 850 lbs.
Flat Load 1,214 lbs.
Material 302 Stainless Steel
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
DFARS Specialty Metals COTS-Exempt

Specifications

Product Number RSBEL-02005A
Spring Type Disc
Disc Spring Type Belleville
System of Measurement Inch
For Shaft Diameter 5/16"
ID 0.328"
OD 9/16"
Thickness 0.041"
Height 0.081"
Deflection @ Working Load 0.016"
Working Load 850 lbs.
Flat Load 1,214 lbs.
Material 302 Stainless Steel
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
DFARS Specialty Metals COTS-Exempt
