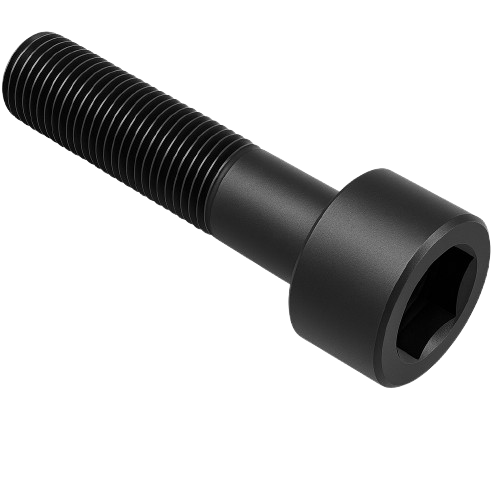

Socket Head Cap Screw Fine Thread Black Steel 1-1/8-12 * 6-1/2" Grade 8 [Cup Point] [Allen Drive]

Socket Head Cap Screw Fine Thread Black Steel 1-1/8-12 * 6-1/2" Grade 8 [Cup Point] [Allen Drive]

$96.00
$96.00
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Price may change with quantity see chart under PROMOTIONS


With a tensile strength of 170,000 psi, these alloy steel screws are stronger than Grade 8 steel screws. Length is measured from under the head.

Black-oxide steel screws are mildly corrosion resistant in dry environments. Fine and extra-fine threads are closely spaced to prevent loosening from vibration: the finer the thread, the better the resistance. They are not compatible with coarse threads.

View full details

Specifications
Product Number VPCF-11065
Head Type Socket
Socket Head Profile Standard
Drive Style Hex
System of Measurement Inch
Thread Direction Right Hand
Thread Size 1 1/8"-12
Screw Size Decimal Equivalent 1.125"
Thread Type UNF
Thread Fit Class 2A
Length 6-1/2"
Threading Partially Threaded
Min. Thread Length 2 7/8"
Thread Spacing Fine

Head
Diameter 1 11/16"
Height 1 1/8"
Drive Size 7/8"
Material Black-Oxide Alloy Steel
Tensile Strength 170,000 psi
Hardness Rockwell C37
Specifications Met ASTM A574
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (01/16/2020, 205 SVHC) Compliant
