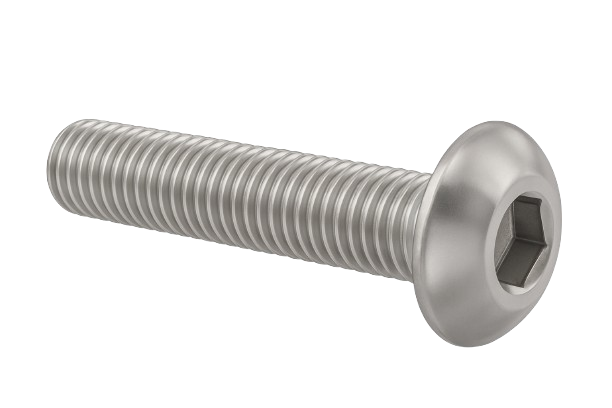

Metric Button Head Cap Screw A2 Stainless Steel [Equivalent 304 SS] Full Thread M10 * 1.5 * 45mm [Allen Key]

Metric Button Head Cap Screw A2 Stainless Steel [Equivalent 304 SS] Full Thread M10 * 1.5 * 45mm [Allen Key]

$2.00
$2.00
Sale Sold out
Shipping calculated at checkout.
Title
Download

This button head cap screw has a length of 45mm with a threading of M10 * 1.5mm [Fully Threaded]. It is made of A2 Stainless Steel [Equivalent 304 SS] and thus provides a high resistance to corrosion in dry and wet environments.

The cup point and the A2 Stainless Steel [Equivalent 304 SS] increases its strength against the pressure and has a tensile strength and hardness of 70,000 psi | Rockwell B70. Furthermore, it features a shear strenght of 42,000 psi.

ISO Metric Pitch | Coarse threads are an industry standard. These screws are classified as DIN 7380 and comply with dimensional standards.

View full details

Specifications
Product Number VPSBM-10045
Nominal Diameter M10 * 1.5mm
Length 45mm
Material and/or Plating A2 Stainless Steel [Equivalent 304 SS]
System of Measurement Metric

Thread Specifications
Threading Fully Threaded
Type ISO Metric Pitch | Coarse
Direction Right Hand
Size M10 * 1.5mm
Fit Class 5g6g

Head Specifications
Type Button
Profile Standard
Diameter 22.00mm
Height 5.50mm
Drive Style Allen Key
Drive Size 6.00mm

Strength Specifications
Tensile Strength | Hardness 70,000 psi | Rockwell B70
Shear Strength 42,000 psi
Classification DIN 7380
