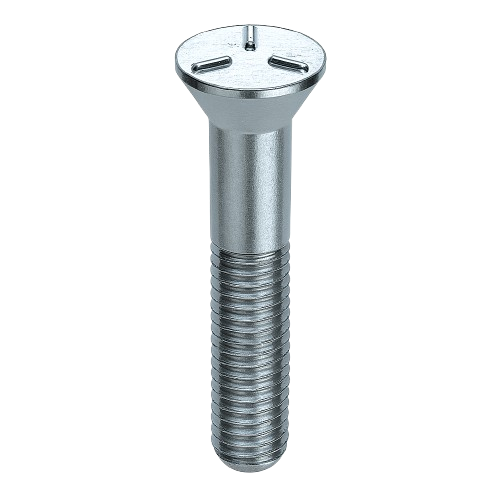

Imperial Plow Bolt Partial Thread Zinc Plated 7/16-14 * 2-1/2" Grade 5

Imperial Plow Bolt Partial Thread Zinc Plated 7/16-14 * 2-1/2" Grade 5

2.31 $ CAD
2.31 $ CAD
En vente Épuisé
Frais d'expédition calculés à l'étape de paiement.
Title
Télécharger

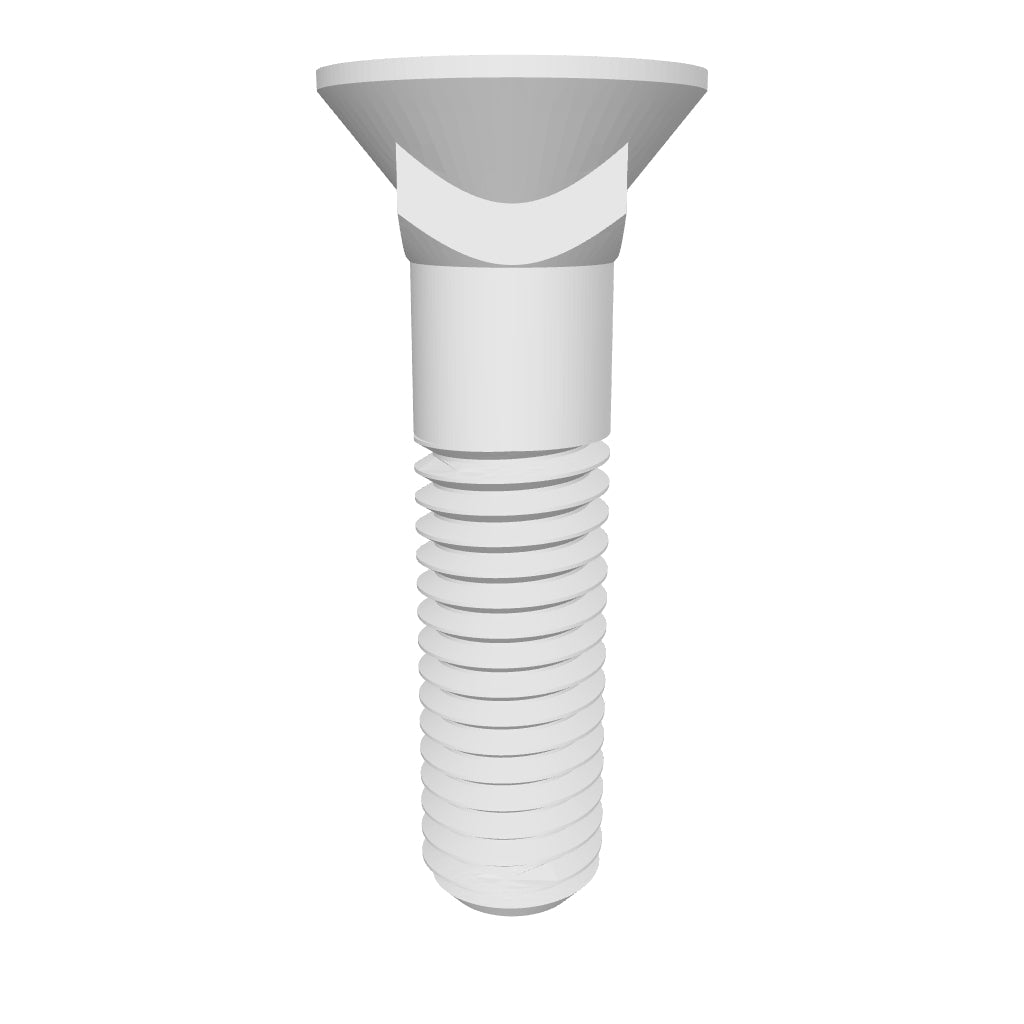

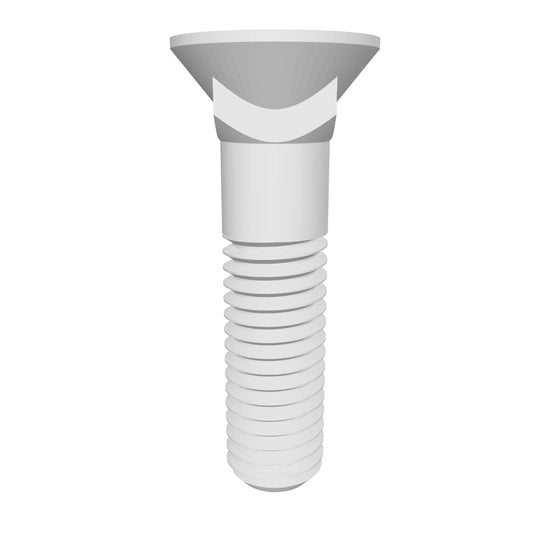

This plow bolt has a length of 2-1/2" with a threading of 7/16-14 [Partially Threaded]. It is made of zinc plated and thus provide medium resistance to corrosion in both dry and wet environments.

The Grade 5 increases its strength against the pressure and has a tensile strength and hardness of 120,000 psi | Rockwell C25. Furthermore, it features a shear strength of 72,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ASME B18.9 | SAE J429 and comply with dimensional standards.

Afficher tous les détails

Spécifications
Product Number BH5-04025-Z
Nominal Diameter 7/16-14
Length 2-1/2"
Material and/or Plating Zinc Plated
System of Measurement Imperial

Thread Specifications
Threading Partially Threaded
Type UNC | Coarse
Direction Right Hand
Size 7/16-14
Shank Length 1-3/4
Shank Length 1-3/4
Min. Length 1-1/8"
Fit Class 5g6g

Head Specification
Type Plow
Profile Standard
Diameter 53/64"
Height 5/16"

Neck Specifications
Form Square
Width 29/64"

Strength Specifications
Strength Grade/Class Grade 5
Tensile Strength | Hardness 120,000 psi | Rockwell C25
Shear Strength 72,000 psi
Classification ASME B18.9 | SAE J429
