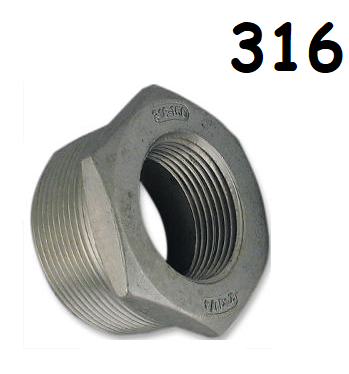

Low Pressure Bushing Adapter Pipe Fitting 316 Stainless Steel 1-11-1/2 Male Reduce to 3/4-14 Female [NPT]

Low Pressure Bushing Adapter Pipe Fitting 316 Stainless Steel 1-11-1/2 Male Reduce to 3/4-14 Female [NPT]

22.17 $ CAD
22.17 $ CAD
En vente Épuisé
Frais d'expédition calculés à l'étape de paiement.
Quantity
Télécharger

Price may change with quantity see chart under PROMOTIONS


Use these fittings in a low-pressure pipe line.

Fittings that meet ANSI/MSS SP-114 adhere to high-quality standards for heat treating, material thickness, and marking. 316 stainless steel fittings have excellent corrosion resistance.

Afficher tous les détails

Spécifications
Product Number REDUIS3-10007-150NPT
For Use With Air, Natural Gas, Oil, Steam, Water
Shape Straight
Type Reducing Adapter, Bushing
Body Shape Hex
Material 316 Stainless Steel
Class 150
Fabrication Heat Treated
Connection Type Pipe
Connection Style Threaded
Connection NPT Male × NPT Female

Pipe Size
From (Male) 1"
Reducing To (Female) 3/4-14"
Length 1 11/64"
Hex Width 1 3/8"
Maximum Pressure 150 psi @ 72° F
Maximum Steam Pressure 150 psi @ 360° F

For Pipe
Schedule 40
Material 316 Stainless Steel

For Flange
Class 150
Material 316 Stainless Steel
Specifications Met ANSI/MSS SP-114, ASTM A351
System of Measurement Inch
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (01/16/2020, 205 SVHC) Compliant
