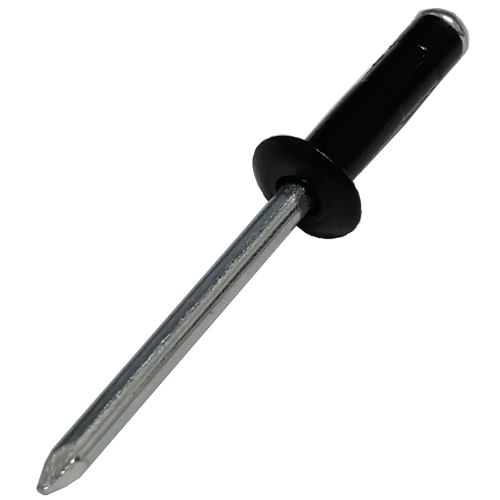

Pop Rivet Multigrip Domed Aluminum/Steel Black Mandrel 3/16" * 11/16" [GRIP : 7/16" to 9/16" | DRILL : #11]

Pop Rivet Multigrip Domed Aluminum/Steel Black Mandrel 3/16" * 11/16" [GRIP : 7/16" to 9/16" | DRILL : #11]

Prix habituel 0.35 $ CAD
Prix habituel Prix promotionnel 0.35 $ CAD
En vente Épuisé
Quantity
Télécharger

These blind rivets create a strong hold even in wet and damp areas. The domed head gives your project a finished appearance.

Use these blind rivets to fasten hinges, shelves, or other assemblies where you can only access one side. You can also use them to join materials that are difficult to weld or solder. The back of the rivet deforms during installation, so it creates a permanent hold that won't loosen from vibration. It also means you can't overtighten or strip them.

To install these rivets, you’ll need a blind rivet tool (sold separately). Be sure to pick a tool that’s compatible with your rivet’s diameter and material..

Those that meet IFI 114 comply with industry standards.

Afficher tous les détails

Spécifications

Product Number RIM-00806A-AL-AC-N
Rivet Type Blind [Pop Rivet] | Multigrip
Mandrel Diameter 3/16"
Length 11/16"
Mandrel Material Aluminum
Mandrel Plating/Color Black Paint
Rod Material Steel
Rod Plating/Color Zinc Plated
For Material Thickness 7/16" to 9/16"
For Drill Bit Size No. 11
For Hole Size 0.192"-0.196"
Head Type Domed
Head Size Standard
Head Diameter 0.375"
Head Height 0.08"
Shear Strength 950 lbs.
Tensile Strength 1,200 lbs.
Specifications Met IFI 114 Standards
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
DFARS Specialty Metals COTS-Exempt
