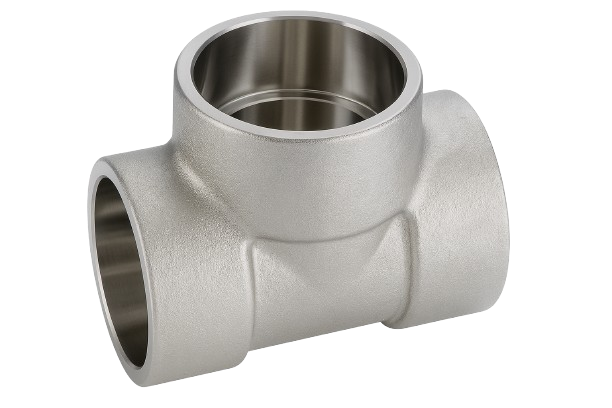

Low Pressure Inline Tee Stainless Steel 1-1/4 [Female Hose]

Low Pressure Inline Tee Stainless Steel 1-1/4 [Female Hose]

82.45 $ CAD
82.45 $ CAD
En vente Épuisé
Frais d'expédition calculés à l'étape de paiement.
Quantity
Télécharger

Price may change with quantity see chart under PROMOTIONS


The highest-quality socket-connect fittings available, these meet ANSI/MSS SP-114 standards for heat treating, material thickness, and marking. Also known as Class 150 fittings, they are designed for low-pressure applications. Socket-connect fittings are easier to weld than butt-weld fittings because the fitting doesn’t need to align perfectly to the pipe. Slide pipe into the socket and weld for a strong, permanent connection.

304 stainless steel fittings have very good corrosion resistance.

Afficher tous les détails

Spécifications
Product Number TES-12000-FHOSE
For Use With Air, Natural Gas, Oil, Water
Shape Tee
Type Connector
Material 304 Stainless Steel
Class 150
Fabrication Heat Treated
Connection Type Pipe
Connection Style Socket Connect

Socket
Connect Type Weld
Depth 0.5"
Gender Female
Pipe Size 1-1/4
Maximum Pressure 150 psi @ 72° F

For Pipe
Schedule 40
Material 304 Stainless Steel

For Flange
Class 150
Material 304 Stainless Steel
Specifications Met ANSI/MSS SP-114, ASTM A351
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (01/16/2020, 205 SVHC) Compliant
