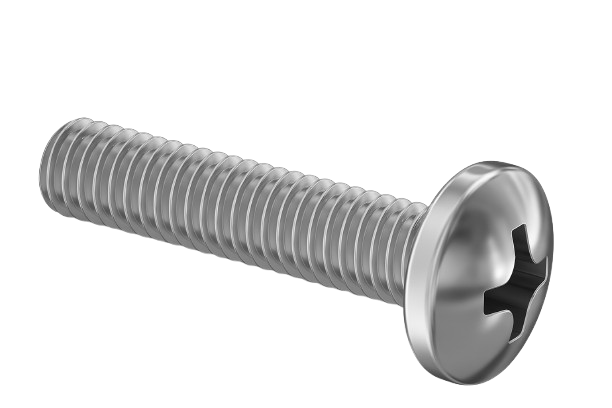

Pan Head Machine Screw Fine & Full Thread Stainless Steel 1-72 * 3/16" [Philips Drive]

Pan Head Machine Screw Fine & Full Thread Stainless Steel 1-72 * 3/16" [Philips Drive]

0.28 $ CAD
0.28 $ CAD
En vente Épuisé
Frais d'expédition calculés à l'étape de paiement.
Quantity
Télécharger

Price may change with quantity see chart under PROMOTIONS


18-8 stainless steel pan head screws have good chemical resistance and may be mildly magnetic. Length is measured from under the head. Partially threaded screws thread length may vary from the minimum thread length published to fully threaded.

Passivated stainless steel screws provide added protection against oxidation and corrosion.

Afficher tous les détails

Spécifications
Product Number VMSPF-00101A
Thread Size 1-72
Length 3/16"
Threading Fully Threaded
Head Diameter 0.142"
Head Height 0.053"
Drive Style Phillips
Drive Size No. 0
Material Passivated 18-8 Stainless Steel
Hardness Rockwell B70
Tensile Strength 70,000 psi
Screw Size Decimal Equivalent 0.073"
Thread Type UNF
Thread Spacing Fine
Thread Fit Class 2A
Thread Direction Right Hand
Head Type Rounded
Rounded Head Style Pan
Rounded Head Profile Standard
System of Measurement Inch
Specifications Met ASME B18.6.3
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
