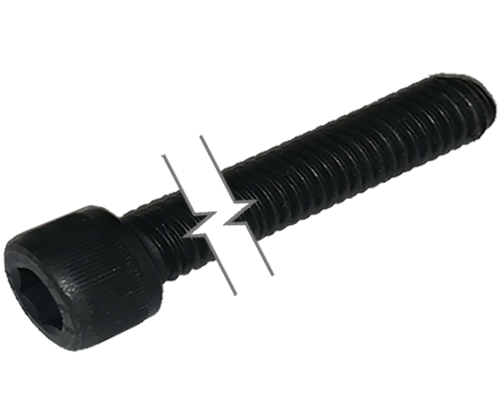

Metric Socket Head Cap Screw Black-Oxide Alloy Steel Full Thread M42 * 4.5 * 110mm Grade 12.9 [Allen Key]

Metric Socket Head Cap Screw Black-Oxide Alloy Steel Full Thread M42 * 4.5 * 110mm Grade 12.9 [Allen Key]

Prix habituel 192.08 $ CAD
Prix habituel Prix promotionnel 192.08 $ CAD
En vente Épuisé
Frais d'expédition calculés à l'étape de paiement.
Quantity
Télécharger

This socket head cap screw has a length of 110mm with a threading of M42 * 4.5mm [Fully Threaded]. It is made of Black-Oxide Alloy Steel and thus provides a mild resistance to corrosion in dry environments.

The cup point and the Grade 12.9 increases its strength against the pressure and has a tensile strength and hardness of 170,000 psi | Rockwell C39. Furthermore, it features a shear strenght of 102,000 psi.

ISO Metric Pitch | Coarse threads are an industry standard. These screws are classified as DIN 912 and comply with dimensional standards.

Afficher tous les détails

Spécifications

Product Number VPCMT-42110
Nominal Diameter M42 * 4.5mm
Length 110mm
Material and/or Plating Black-Oxide Alloy Steel
System of Measurement Metric

Thread Specifications

Threading Fully Threaded
Type ISO Metric Pitch | Coarse
Direction Right Hand
Size M42 * 4.5mm
Fit Class 5g6g

Head Specifications

Type Socket
Profile Standard
Diameter 63.00mm
Height 42.00mm
Drive Style Allen Key
Drive Size 32.00mm

Strength Specifications

Strength Grade/Class Grade 12.9
Tensile Strength | Hardness 170,000 psi | Rockwell C39
Shear Strength 102,000 psi
Classification DIN 912
