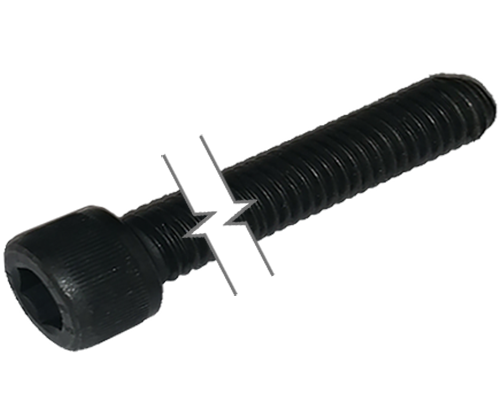

Metric Socket Head Cap Screw Black-Oxide Alloy Steel Full Thread Fine Thread M10 * 1.25 * 16mm Grade 12.9 [Allen Key]

Metric Socket Head Cap Screw Black-Oxide Alloy Steel Full Thread Fine Thread M10 * 1.25 * 16mm Grade 12.9 [Allen Key]

Prix habituel 1.06 $ CAD
Prix habituel Prix promotionnel 1.06 $ CAD
En vente Épuisé
Frais d'expédition calculés à l'étape de paiement.
Quantity
Télécharger

This socket head cap screw has a length of 16mm with a threading of Fine Thread M10 * 1.25mm [Fully Threaded]. It is made of Black-Oxide Alloy Steel and thus provides a mild resistance to corrosion in dry environments.

The cup point and the Grade 12.9 increases its strength against the pressure and has a tensile strength and hardness of 170,000 psi | Rockwell C39. Furthermore, it features a shear strenght of 102,000 psi.

ISO Metric Pitch | Fine threads are an industry standard. These screws are classified as DIN 912 and comply with dimensional standards.

Afficher tous les détails

Spécifications

Product Number VPCMTF-10016
Nominal Diameter Fine Thread M10 * 1.25mm
Length 16mm
Material and/or Plating Black-Oxide Alloy Steel
System of Measurement Metric

Thread Specifications

Threading Fully Threaded
Type ISO Metric Pitch | Fine
Direction Right Hand
Size Fine Thread M10 * 1.25mm
Fit Class 5g6g

Head Specifications

Type Socket
Profile Standard
Diameter 16.00mm
Height 10.00mm
Drive Style Allen Key
Drive Size 8.00mm

Strength Specifications

Strength Grade/Class Grade 12.9
Tensile Strength | Hardness 170,000 psi | Rockwell C39
Shear Strength 102,000 psi
Classification DIN 912
