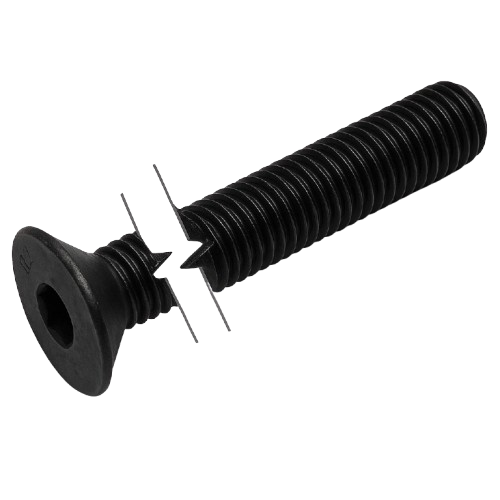

Metric Flat Head Cap Screw Black-Oxide Alloy Steel Full Thread M8 * 1.25 * 15mm Grade 12.9 [Allen Key]

Metric Flat Head Cap Screw Black-Oxide Alloy Steel Full Thread M8 * 1.25 * 15mm Grade 12.9 [Allen Key]

Prix habituel 0.58 $ CAD
Prix habituel Prix promotionnel 0.58 $ CAD
En vente Épuisé
Frais d'expédition calculés à l'étape de paiement.
Title
Télécharger

This flat head cap screw has a length of 15mm with a threading of M8 * 1.25mm [Fully Threaded]. It is made of Black-Oxide Alloy Steel and thus provides a mild resistance to corrosion in dry environments.

The cup point and the Grade 12.9 increases its strength against the pressure and has a tensile strength and hardness of 170,000 psi | Rockwell C39. Furthermore, it features a shear strenght of 102,000 psi.

ISO Metric Pitch | Coarse threads are an industry standard. These screws are classified as DIN 7991 and comply with dimensional standards.

Afficher tous les détails

Spécifications

Product Number VPFMT-08015
Nominal Diameter M8 * 1.25mm
Length 15mm
Material and/or Plating Black-Oxide Alloy Steel
System of Measurement Metric

Thread Specifications

Threading Fully Threaded
Type ISO Metric Pitch | Coarse
Direction Right Hand
Size M8 * 1.25mm
Fit Class 5g6g

Head Specifications

Type Flat
Profile Standard
Diameter 16.00mm
Height 4.40mm
Drive Style Allen Key
Drive Size 5.00mm

Strength Specifications

Strength Grade/Class Grade 12.9
Tensile Strength | Hardness 170,000 psi | Rockwell C39
Shear Strength 102,000 psi
Classification DIN 7991
