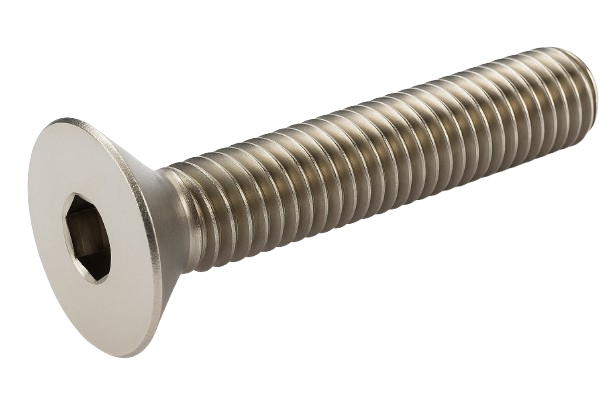

Metric Flat Head Cap Screw A2 Stainless Steel [Equivalent 304 SS] Full Thread M14 * 2 * 80mm [Allen Key]

Metric Flat Head Cap Screw A2 Stainless Steel [Equivalent 304 SS] Full Thread M14 * 2 * 80mm [Allen Key]

Prix habituel 11.52 $ CAD
Prix habituel Prix promotionnel 11.52 $ CAD
En vente Épuisé
Frais d'expédition calculés à l'étape de paiement.
Title
Télécharger

This flat head cap screw has a length of 80mm with a threading of M14 * 2mm [Fully Threaded]. It is made of A2 Stainless Steel [Equivalent 304 SS] and thus provides a high resistance to corrosion in dry and wet environments.

The cup point and the A2 Stainless Steel [Equivalent 304 SS] increases its strength against the pressure and has a tensile strength and hardness of 70,000 psi | Rockwell B70. Furthermore, it features a shear strenght of 42,000 psi.

ISO Metric Pitch | Coarse threads are an industry standard. These screws are classified as DIN 7991 and comply with dimensional standards.

Afficher tous les détails

Spécifications

Product Number VPSFMT-14080
Nominal Diameter M14 * 2mm
Length 80mm
Material and/or Plating A2 Stainless Steel [Equivalent 304 SS]
System of Measurement Metric

Thread Specifications

Threading Fully Threaded
Type ISO Metric Pitch | Coarse
Direction Right Hand
Size M14 * 2mm
Fit Class 5g6g

Head Specifications

Type Flat
Profile Standard
Diameter 27.00mm
Height 7.00mm
Drive Style Allen Key
Drive Size 10.00mm

Strength Specifications

Tensile Strength | Hardness 70,000 psi | Rockwell B70
Shear Strength 42,000 psi
Classification DIN 7991
