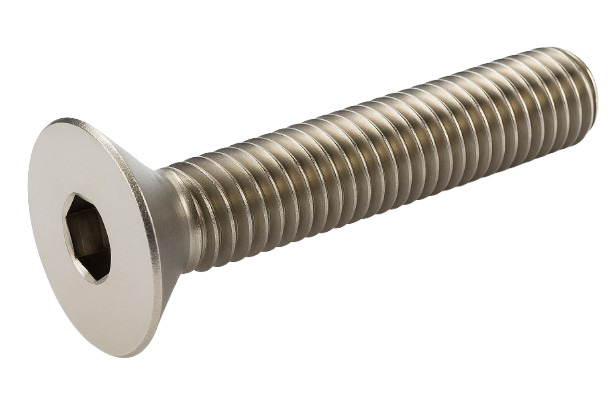

Metric Flat Head Cap Screw A4 Stainless Steel [Equivalent 316 SS] Full Thread M6 * 1 * 12mm [Allen Key]

Metric Flat Head Cap Screw A4 Stainless Steel [Equivalent 316 SS] Full Thread M6 * 1 * 12mm [Allen Key]

Prix habituel 0.49 $ CAD
Prix habituel Prix promotionnel 0.49 $ CAD
En vente Épuisé
Frais d'expédition calculés à l'étape de paiement.
Title
Télécharger

This flat head cap screw has a length of 12mm with a threading of M6 * 1mm [Fully Threaded]. It is made of A4 Stainless Steel [Equivalent 316 SS] and thus provides a very high resistance to corrosion in dry and wet environments.

The cup point and the A4 Stainless Steel [Equivalent 316 SS] increases its strength against the pressure and has a tensile strength and hardness of 75,000 psi | Rockwell B79. Furthermore, it features a shear strenght of 45,000 psi.

ISO Metric Pitch | Coarse threads are an industry standard. These screws are classified as DIN 7991 and comply with dimensional standards.

Afficher tous les détails

Spécifications

Product Number VPSFMT3-06012
Nominal Diameter M6 * 1mm
Length 12mm
Material and/or Plating A4 Stainless Steel [Equivalent 316 SS]
System of Measurement Metric

Thread Specifications

Threading Fully Threaded
Type ISO Metric Pitch | Coarse
Direction Right Hand
Size M6 * 1mm
Fit Class 5g6g

Head Specifications

Type Flat
Profile Standard
Diameter 12.00mm
Height 3.30mm
Drive Style Allen Key
Drive Size 4.00mm

Strength Specifications

Tensile Strength | Hardness 75,000 psi | Rockwell B79
Shear Strength 45,000 psi
Classification DIN 7991
