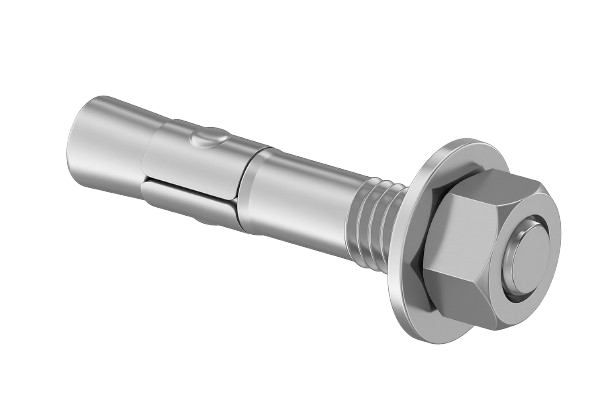

Wedge Anchor for Concrete Zinc 1-8 * 9" [Philips Drive]

Wedge Anchor for Concrete Zinc 1-8 * 9" [Philips Drive]

68.90 $ CAD
31.37 $ CAD 68.90 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Also known as wedge anchors, the base expands as you tighten the nut for a secure hold in concrete. They're often used to anchor machinery. Pull-out strength and shear strength values are 25% of the ultimate values.

Zinc-plated and zinc yellow-chromate plated steel anchors are corrosion resistant in wet environments.

View full details

Specifications
Product Number ANC-10090
Material Zinc-Plated Steel
Diameter 1"
Length 9"
Thread Size 1"-8
Min. Thread Length 2 1/4"
Washer OD 2"
Nut Width 1 1/2"
Drill Bit Size 1"
Drill Bit Size Decimal Equivalent 1"
Min. Installation Depth 4 1/2"

Strength, lbs.
Pull-Out 3,400
Shear 5,200
Tested In 4,000 psi Concrete
Required Installation Torque 300 ft.-lbs.

Thread
Direction Right Hand
Type UNC
Spacing Coarse
For Use In Concrete
Includes Hex Nut, Washer
Removable Permanent
Anchor Type Stud
System of Measurement Inch
RoHS RoHS 3 (2015/863/EU) compliant
