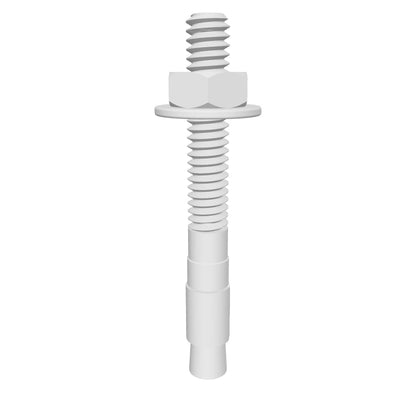

Wedge Anchor for Concrete Stainless Steel 1/4-20 * 3-1/4"

Wedge Anchor for Concrete Stainless Steel 1/4-20 * 3-1/4"

4.18 $ CAD
4.18 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

These 18-8 stainless steel anchors have good chemical resistance and may be mildly magnetic. Also known as wedge anchors, the base expands as you tighten the nut for a secure hold in concrete. They're often used to anchor machinery. Pull-out strength and shear strength values are 25% of the ultimate values.

View full details

Specifications
Product Number ANCS-01032
Material 18-8 Stainless Steel
Diameter 1/4"
Thread Size 1/4"-20
Min. Thread Length 5/8"
Washer OD 5/8"
Nut Width 7/16"
Drill Bit Size 1/4"
Drill Bit Size Decimal Equivalent 0.25"
Min. Installation Depth 1 1/4"

Strength, lbs.
Pull-Out 210
Shear 250
Tested In 4,000 psi Concrete
Required Installation Torque 8 ft.-lbs.

Thread
Direction Right Hand
Type UNC
Spacing Coarse
For Use In Concrete
Includes Hex Nut, Washer
Removable Permanent
Anchor Type Stud
System of Measurement Inch
RoHS RoHS 3 (2015/863/EU) compliant
