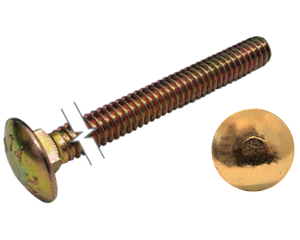

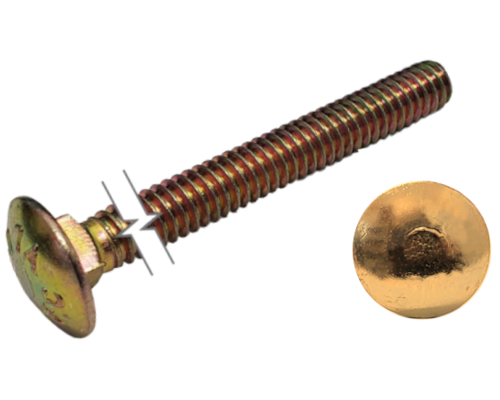

Imperial Carriage Bolt Dome Head Full Thread Yellow Zinc Plated 1/4-20 * 2" Grade 2

Imperial Carriage Bolt Dome Head Full Thread Yellow Zinc Plated 1/4-20 * 2" Grade 2

0.50 $ CAD
0.43 $ CAD 0.50 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download



This carriage | dome bolt has a length of 2" with a threading of 1/4-20 [Fully Threaded]. It is made of yellow zinc plated and thus provide medium resistance to corrosion in dry environments and low resistance in wet environments, but Yellow Zinc provide a higher corrosion resistance than regular zinc.

The Grade 2 increases its strength against the pressure and has a tensile strength and hardness of 60,000 psi | Rockwell B69.8. Furthermore, it features a shear strength of 36,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ASME B18.5 | SAE J429 and comply with dimensional standards.

View full details

Specifications
Product Number BC-01020-Y
Nominal Diameter 1/4-20
Length 2"
Material and/or Plating Yellow Zinc Plated
System of Measurement Imperial

Thread Specifications
Threading Fully Threaded
Type UNC | Coarse
Direction Right Hand
Size 1/4-20
Shank Length 1-3/4
Fit Class 5g6g

Head Specification
Type Carriage | Dome
Profile Standard
Diameter 19/32"
Height 9/64"
Drive Style None

Neck Specifications
Form Square
Width 1/4"
Height 5/32"

Strength Specifications
Strength Grade/Class Grade 2
Tensile Strength | Hardness 60,000 psi | Rockwell B69.8
Shear Strength 36,000 psi
Classification ASME B18.5 | SAE J429
