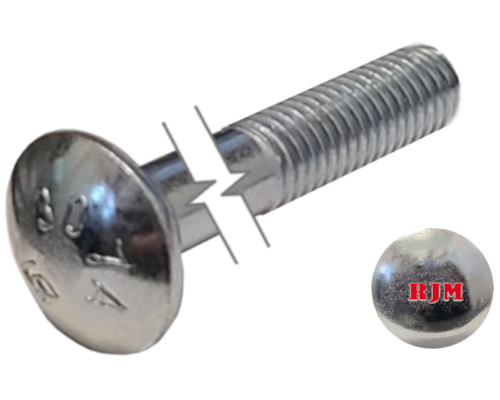

Imperial Carriage Bolt Dome Head Partial Thread Zinc Plated 1/2-13 * 8" Grade 2

Imperial Carriage Bolt Dome Head Partial Thread Zinc Plated 1/2-13 * 8" Grade 2

3.21 $ CAD
3.21 $ CAD
Sale Sold out
Shipping calculated at checkout.
Title
Download

This carriage | dome bolt has a length of 8" with a threading of 1/2-13 [Partially Threaded]. It is made of zinc plated and thus provide medium resistance to corrosion in both dry and wet environments.

The Grade 2 increases its strength against the pressure and has a tensile strength and hardness of 60,000 psi | Rockwell B69.8. Furthermore, it features a shear strength of 36,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ASME B18.5 | SAE J429 and comply with dimensional standards.

View full details

Specifications
Product Number BC-05080-PT
Nominal Diameter 1/2-13
Length 8"
Material and/or Plating Zinc Plated
System of Measurement Imperial

Thread Specifications
Threading Partially Threaded
Type UNC | Coarse
Direction Right Hand
Size 1/2-13
Shank Length 1-3/4
Shank Length 1-3/4
Min. Length 1"
Fit Class 5g6g

Head Specification
Type Carriage | Dome
Profile Standard
Diameter 1-6/64"
Height 17/64"
Drive Style None

Neck Specifications
Form Square
Width 33/64"
Height 9/32"

Strength Specifications
Strength Grade/Class Grade 2
Tensile Strength | Hardness 60,000 psi | Rockwell B69.8
Shear Strength 36,000 psi
Classification ASME B18.5 | SAE J429
