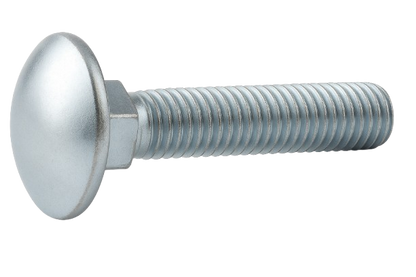

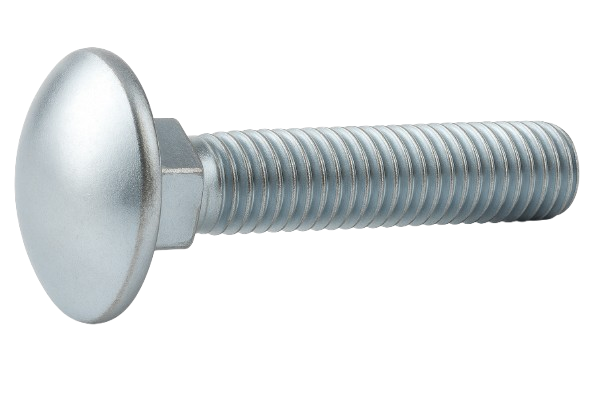

Imperial Carriage Bolt Dome Head Full Thread Zinc Plated 5/16-18 * 1-1/4" Grade 5

Imperial Carriage Bolt Dome Head Full Thread Zinc Plated 5/16-18 * 1-1/4" Grade 5

0.72 $ CAD
0.72 $ CAD
Sale Sold out
Shipping calculated at checkout.
Title
Download

This carriage | dome bolt has a length of 2" with a threading of 10-24 [Fully Threaded]. It is made of zinc plated and thus provide medium resistance to corrosion in both dry and wet environments.

The Grade 5 increases its strength against the pressure and has a tensile strength and hardness of 60,000 psi | Rockwell B69.8. Furthermore, it features a shear strength of 36,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ASME B18.5 | SAE J429 and comply with dimensional standards.

View full details

Specifications
Product Number BC5-02012
Nominal Diameter 5/16-18
Length 1-1/4"
Material and/or Plating Zinc Plated
System of Measurement Imperial

Thread Specifications
Threading Fully Threaded
Type UNC | Coarse
Direction Right Hand
Size 5/16-18
Shank Length 1-3/4
Fit Class 5g6g

Head Specification
Type Carriage | Dome
Profile Standard
Diameter 23/32"
Height 11/64"
Drive Style None

Neck Specifications
Form Square
Width 5/16"
Height 3/16"

Strength Specifications
Strength Grade/Class Grade 5
Tensile Strength | Hardness 120,000 psi | Rockwell C25
Shear Strength 72,000 psi
Classification ASME B18.5 | SAE J429
