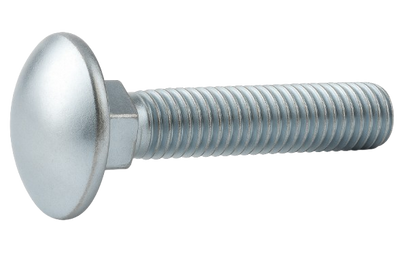

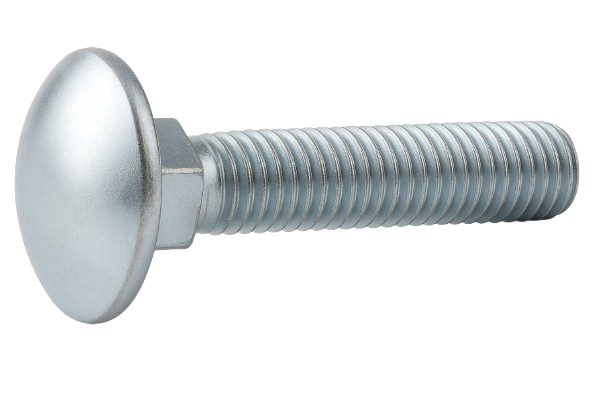

Imperial Carriage Bolt Dome Head Partial Thread Zinc Plated 5/8-11 * 7" Grade 5

Imperial Carriage Bolt Dome Head Partial Thread Zinc Plated 5/8-11 * 7" Grade 5

8.04 $ CAD
8.04 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

This carriage | dome bolt has a length of 7" with a threading of 5/8-11 [Partially Threaded]. It is made of zinc plated and thus provide medium resistance to corrosion in both dry and wet environments.

The Grade 5 increases its strength against the pressure and has a tensile strength and hardness of 60,000 psi | Rockwell B69.8. Furthermore, it features a shear strength of 36,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ASME B18.5 | SAE J429 and comply with dimensional standards.

View full details

Specifications
Product Number BC5-07070-PT
Nominal Diameter 5/8-11
Length 7"
Material and/or Plating Zinc Plated
System of Measurement Imperial

Thread Specifications
Threading Partially Threaded
Type UNC | Coarse
Direction Right Hand
Size 5/8-11
Shank Length 1-3/4
Shank Length 1-3/4
Min. Length 1"
Fit Class 5g6g

Head Specification
Type Carriage | Dome
Profile Standard
Diameter 1-11/32"
Height 11/32"
Drive Style None

Neck Specifications
Form Square
Width 41/64"
Height 11/32"

Strength Specifications
Strength Grade/Class Grade 5
Tensile Strength | Hardness 120,000 psi | Rockwell C25
Shear Strength 72,000 psi
Classification ASME B18.5 | SAE J429
