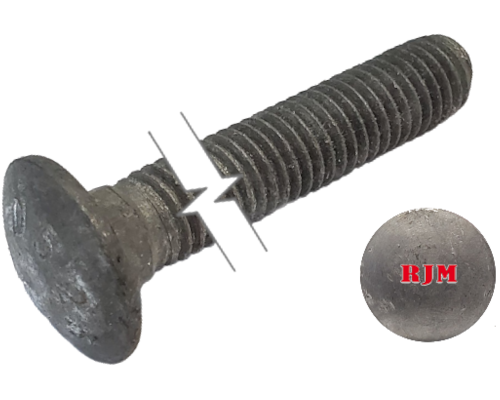

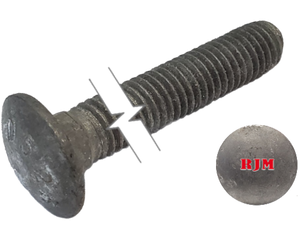

Imperial Carriage Bolt Dome Head Full Thread Galvanized 3/8-16 * 3" Grade 2

Imperial Carriage Bolt Dome Head Full Thread Galvanized 3/8-16 * 3" Grade 2

Regular price 0.88 $ CAD
Regular price 0.88 $ CAD Sale price 0.88 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

This carriage | dome bolt has a length of 3" with a threading of 3/8-16 [Fully Threaded]. It is galvanized and thus provide high resistance to corrosion in dry environments as well as medium corrosion resistance in wet environments.

The Grade 2 increases its strength against the pressure and has a tensile strength and hardness of 60,000 psi | Rockwell B69.8. Furthermore, it features a shear strength of 36,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ASME B18.5 | SAE J429 and comply with dimensional standards.

View full details

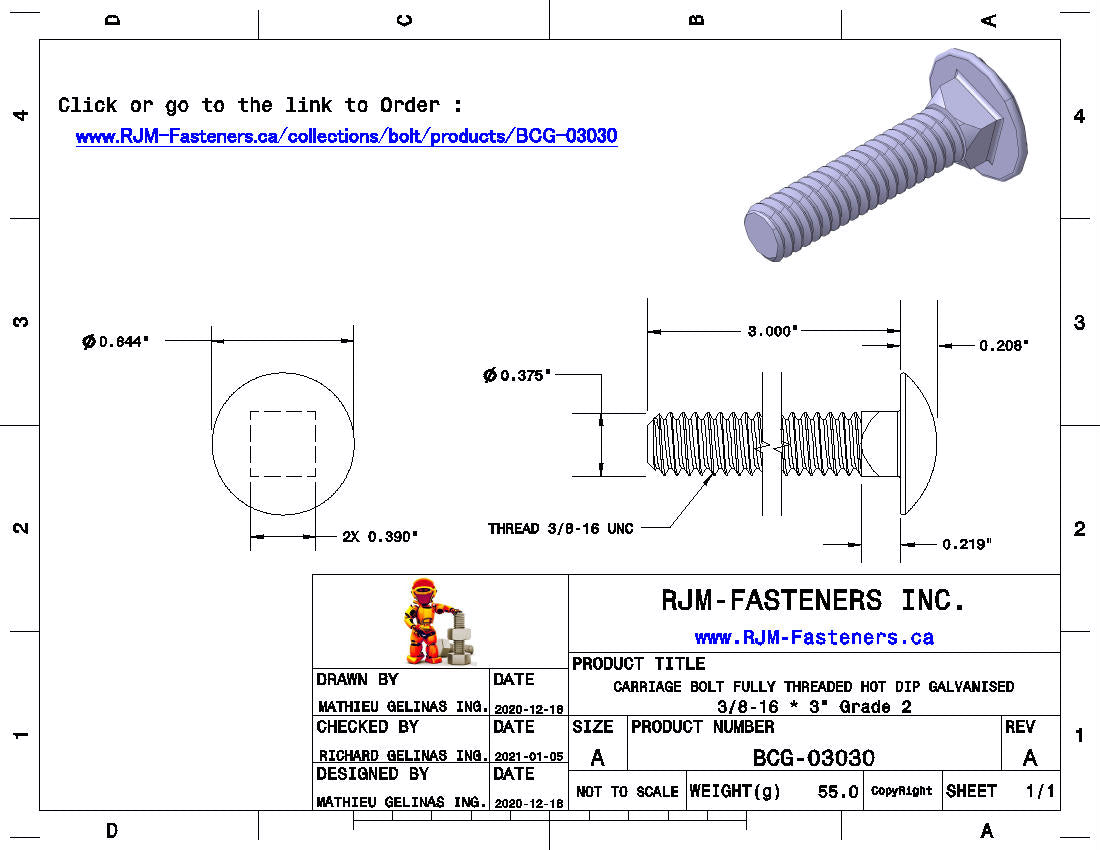

Specifications

Product Number BCG-03030
Nominal Diameter 3/8-16
Length 3"
Material and/or Plating Galvanized
System of Measurement Imperial

Thread Specifications

Threading Fully Threaded
Type UNC | Coarse
Direction Right Hand
Size 3/8-16
Shank Length 1-3/4
Fit Class 5g6g

Head Specification

Type Carriage | Dome
Profile Standard
Diameter 27/32"
Height 9/32"
Drive Style None

Neck Specifications

Form Square
Width 25/64"
Height 7/32"

Strength Specifications

Strength Grade/Class Grade 2
Tensile Strength | Hardness 60,000 psi | Rockwell B69.8
Shear Strength 36,000 psi
Classification ASME B18.5 | SAE J429
