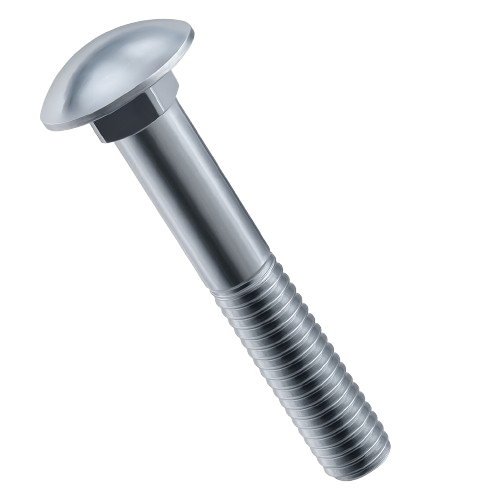

Imperial Carriage Bolt Partial Thread 304 Stainless Steel 7/8-9 * 8"

Imperial Carriage Bolt Partial Thread 304 Stainless Steel 7/8-9 * 8"

69.85 $ CAD
69.85 $ CAD
Sale Sold out
Shipping calculated at checkout.
Title
Download



This carriage bolt has a length of 8" with a threading of 7/8-9 [Partially Threaded]. It is made of 304 stainless steel, provides high resistance to corrosion in dry and wet environments.

The 304 Stainless Steel increases its strength against the pressure and has a tensile strength and hardness of 75,000 psi | Rockwell B79. Furthermore, it features a shear strength of 45,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ASME B18.5 | SAE J429 and comply with dimensional standards.

View full details

Specifications
Product Number BCS-09080-PT
Nominal Diameter 7/8-9
Length 8"
Material and/or Plating 304 Stainless Steel
System of Measurement Imperial

Thread Specifications
Threading Partially Threaded
Type UNC | Coarse
Direction Right Hand
Size 7/8-9
Min. Length 1"
Fit Class 5g6g

Head Specification
Type Carriage
Profile Standard
Diameter 1-27/32"
Height 15/32"
Drive Style None

Neck Specifications
Form Square
Width 57/64"
Height 15/32"

Strength Specifications
Tensile Strength | Hardness 75,000 psi | Rockwell B79
Shear Strength 45,000 psi
Classification ASME B18.5 | SAE J429
