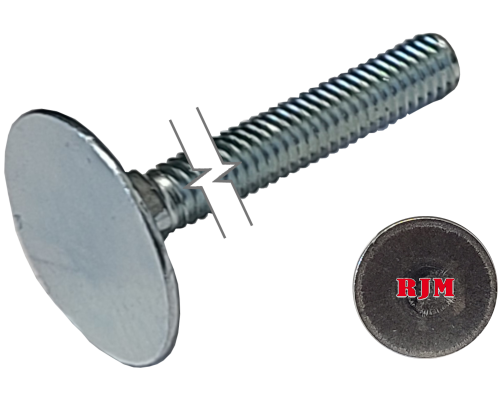

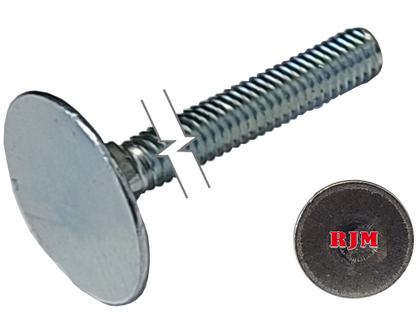

Imperial Elevator Bolt Full Thread Zinc Plated 5/16-18 * 2-1/2" Grade 2

Imperial Elevator Bolt Full Thread Zinc Plated 5/16-18 * 2-1/2" Grade 2

2.05 $ CAD
2.05 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download



This elevator bolt has a length of 2-1/2" with a threading of 5/16-18 [Fully Threaded]. It is made of zinc plated and thus provide medium resistance to corrosion in both dry and wet environments.

The Grade 2 increases its strength against the pressure and has a tensile strength and hardness of 60,000 psi | Rockwell B69.8. Furthermore, it features a shear strength of 36,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ANSI/ASME B 18.5 and comply with dimensional standards.

View full details

Specifications
Product Number BE-02025
Nominal Diameter 5/16-18
Length 2-1/2"
Material and/or Plating Zinc Plated
System of Measurement Imperial

Thread Specifications
Threading Fully Threaded
Type UNC | Coarse
Direction Right Hand
Size 5/16-18
Shank Length 1-3/4
Fit Class 5g6g

Head Specification
Type Elevator
Profile Standard
Diameter 1-3/16"
Height 7/64"

Neck Specifications
Form Square
Width 21/64"
Height 3/16"

Strength Specifications
Strength Grade/Class Grade 2
Tensile Strength | Hardness 60,000 psi | Rockwell B69.8
Shear Strength 36,000 psi
Classification ANSI/ASME B 18.5
