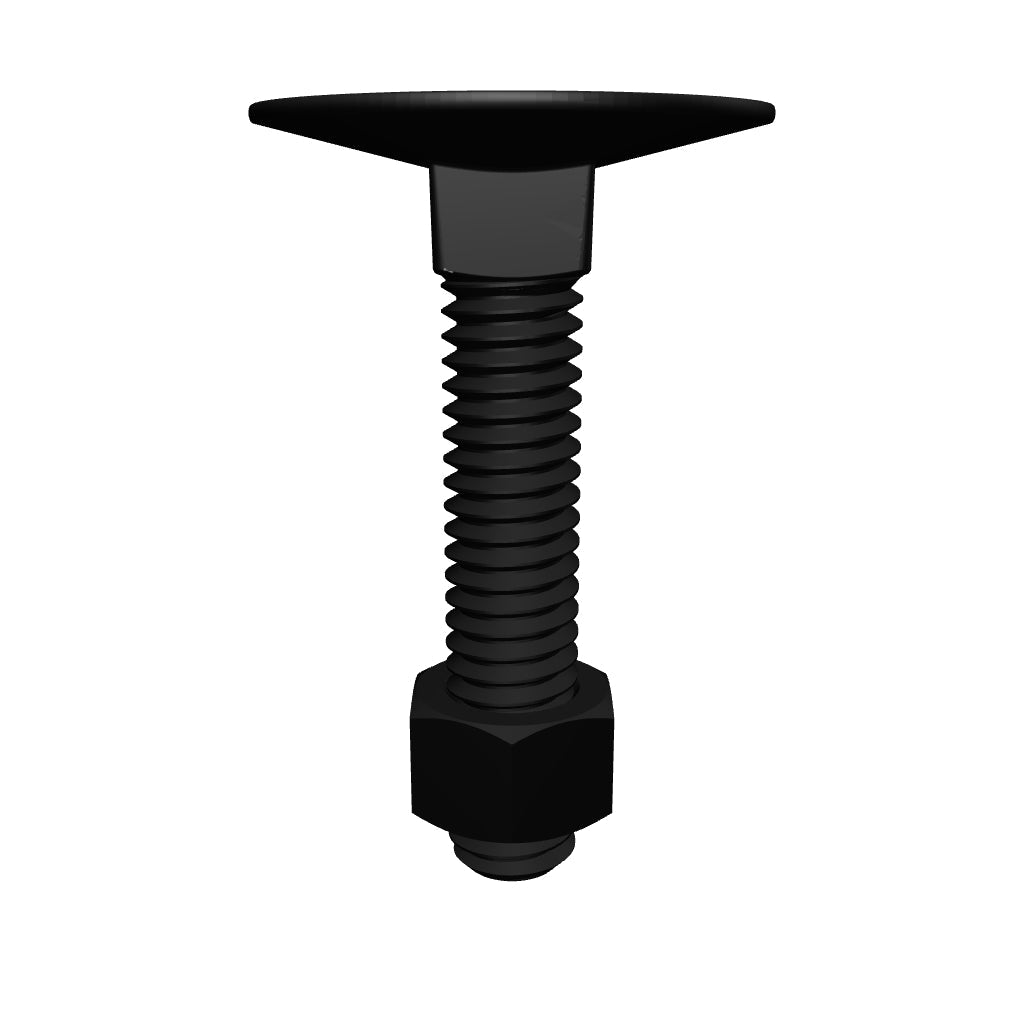

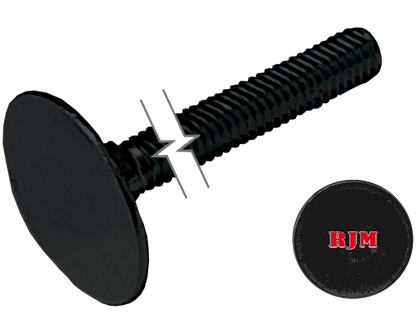

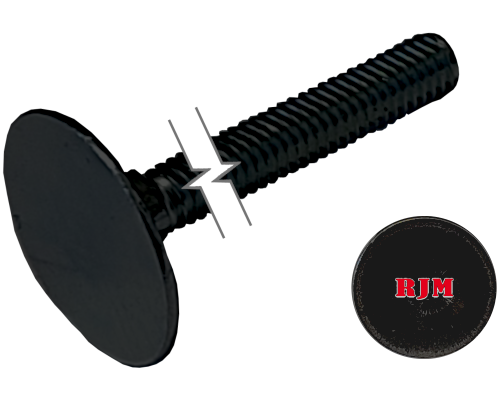

Imperial Elevator Bolt Full Thread Plain Alloy Steel 3/8-16 * 3-1/2" Grade 2

Imperial Elevator Bolt Full Thread Plain Alloy Steel 3/8-16 * 3-1/2" Grade 2

Regular price 4.16 $ CAD
Regular price Sale price 4.16 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

This elevator bolt has a length of  3-1/2" with a threading of  3/8-16 [Fully Threaded]. It is made of plain alloy steel and thus provides low resistance to corrosion in dry and wet environments.

The Grade 2 increases its strength against the pressure and has a tensile strength and hardness of 60,000 psi | Rockwell B69.8. Furthermore, it features a shear strength of 36,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ANSI/ASME B 18.5 and comply with dimensional standards.

View full details

Specifications

Product Number BE-03035-N
Nominal Diameter 3/8-16
Length 3-1/2"
Material and/or Plating Plain Alloy Steel
System of Measurement Imperial

Thread Specifications

Threading Fully Threaded
Type UNC | Coarse
Direction Right Hand
Size 3/8-16
Shank Length Full Thread
Fit Class 5g6g

Head Specification

Type Elevator
Profile Standard
Diameter 1-5/16"
Height 9/64"

Neck Specifications

Form Square
Width 25/64"
Height 7/32"

Strength Specifications

Strength Grade/Class Grade 2
Tensile Strength | Hardness 60,000 psi | Rockwell B69.8
Shear Strength 36,000 psi
Classification ANSI/ASME B 18.5
