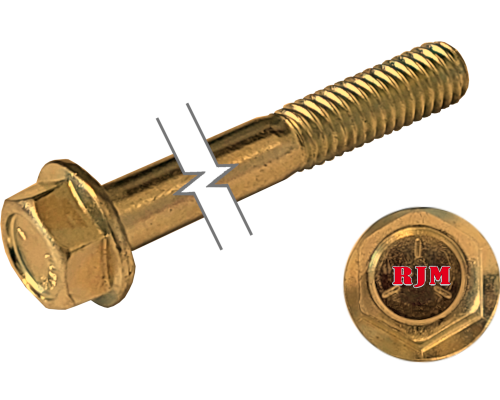

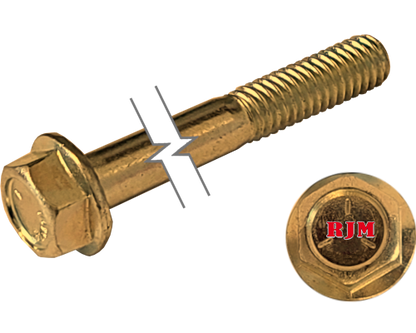

Imperial Flanged Hexagonal Bolt Partial Thread Yellow Zinc Plated 5/16-18 * 2" Grade 5

Imperial Flanged Hexagonal Bolt Partial Thread Yellow Zinc Plated 5/16-18 * 2" Grade 5

1.02 $ CAD
1.02 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download



This hexagonal bolt has a length of 2" with a threading of 5/16-18 [Partially Threaded]. It is made of yellow zinc plated and thus provide medium resistance to corrosion in dry environments and low resistance in wet environments, but Yellow Zinc provide a higher corrosion resistance than regular zinc.

The Grade 5 increases its strength against the pressure and has a tensile strength and hardness of 120,000 psi | Rockwell C25. Furthermore, it features a shear strength of 72,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as IFI 111 | SAE J429 and comply with dimensional standards.

View full details

Specifications
Product Number BE5-02020-Y
Nominal Diameter 5/16-18
Length 2"
Material and/or Plating Yellow Zinc Plated
System of Measurement Imperial

Thread Specifications
Threading Partially Threaded
Type UNC | Coarse
Direction Right Hand
Size 5/16-18
Shank Length 1-3/4
Shank Length 1-3/4
Min. Length 7/8"
Fit Class 5g6g

Head Specification
Type Hexagonal
Profile Flanged
Width 1/2"
Height 7/32"
Flange Diameter 11/16
Drive Style External Hex

Strength Specifications
Strength Grade/Class Grade 5
Tensile Strength | Hardness 120,000 psi | Rockwell C25
Shear Strength 72,000 psi
Classification IFI 111 | SAE J429
