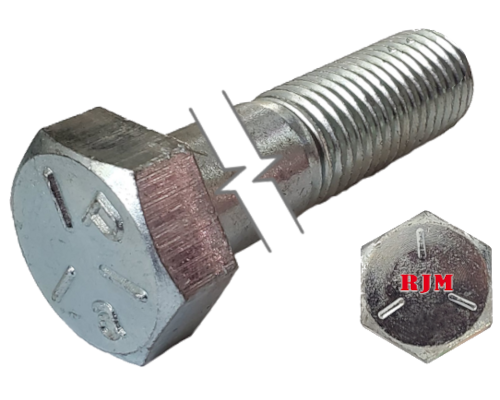

Imperial Hexagonal Bolt Fine And Partial Thread Zinc Plated 5/8-18 * 7 " Grade 5

Imperial Hexagonal Bolt Fine And Partial Thread Zinc Plated 5/8-18 * 7 " Grade 5

6.83 $ CAD
6.83 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

This hexagonal bolt has a length of 7" with a threading of 5/8-18 [Partially Threaded]. It is made of zinc plated and thus provide medium resistance to corrosion in both dry and wet environments.

The Grade 5 increases its strength against the pressure and has a tensile strength and hardness of 120,000 psi | Rockwell C25. Furthermore, it features a shear strength of 72,000 psi.

UNF | Fine threads are an industry standard. These bolts are classified as ASME B19.2.1 | SAE J429 and comply with dimensional standards.

View full details

Specifications
Product Number BF5-07070
Nominal Diameter 5/8-18
Length 7"
Material and/or Plating Zinc Plated
System of Measurement Imperial

Thread Specifications
Threading Partially Threaded
Type UNF | Fine
Direction Right Hand
Size 5/8-18
Shank Length 1-3/4
Shank Length 1-3/4
Min. Length 1-3/4"
Fit Class 5g6g

Head Specification
Type Hexagonal
Profile Standard
Width 15/16"
Height 13/32"
Drive Style External Hex

Strength Specifications
Strength Grade/Class Grade 5
Tensile Strength | Hardness 120,000 psi | Rockwell C25
Shear Strength 72,000 psi
Classification ASME B19.2.1 | SAE J429
