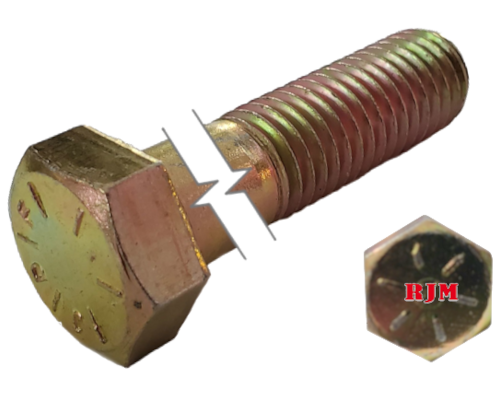

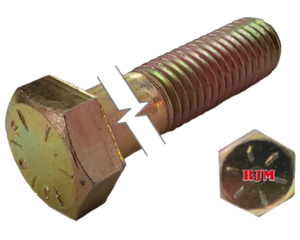

Imperial Hexagonal Bolt Fine And Partial Thread Yellow Zinc Plated 7/16-20 * 3" Grade 8

Imperial Hexagonal Bolt Fine And Partial Thread Yellow Zinc Plated 7/16-20 * 3" Grade 8

Regular price 4.02 $ CAD
Regular price 3.15 $ CAD Sale price 4.02 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

This hexagonal bolt has a length of 3" with a threading of 7/16-20 [Partially Threaded]. It is made of yellow zinc plated and thus provide medium resistance to corrosion in dry environments and low resistance in wet environments, but Yellow Zinc provide a higher corrosion resistance than regular zinc.

The Grade 8 increases its strength against the pressure and has a tensile strength and hardness of 150,000 psi | Rockwell C33. Furthermore, it features a shear strength of 90,000 psi.

UNF | Fine threads are an industry standard. These bolts are classified as ASME B19.2.1 | SAE J429 and comply with dimensional standards.

View full details

Specifications

Product Number BF8-04030
Nominal Diameter 7/16-20
Length 3"
Material and/or Plating Yellow Zinc Plated
System of Measurement Imperial

Thread Specifications

Threading Partially Threaded
Type UNF | Fine
Direction Right Hand
Size 7/16-20
Shank Length 1-3/4
Shank Length 1-3/4
Min. Length 1-1/8"
Fit Class 5g6g

Head Specification

Type Hexagonal
Profile Standard
Width 5/8"
Height 9/32"
Drive Style External Hex

Strength Specifications

Strength Grade/Class Grade 8
Tensile Strength | Hardness 150,000 psi | Rockwell C33
Shear Strength 90,000 psi
Classification ASME B19.2.1 | SAE J429
