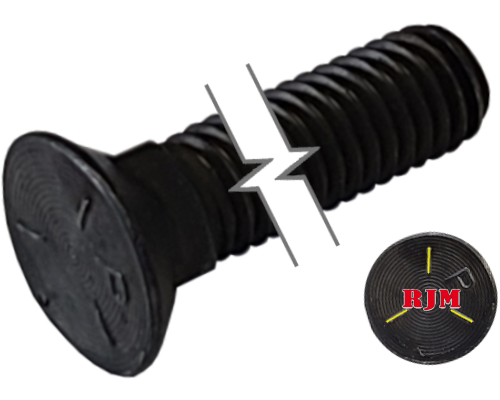

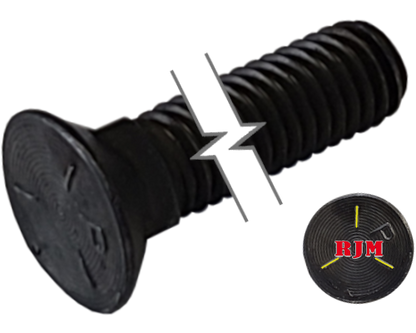

Imperial Plow Bolt Full Thread Plain Alloy Steel 7/16-14 * 1-3/4" Grade 5

Imperial Plow Bolt Full Thread Plain Alloy Steel 7/16-14 * 1-3/4" Grade 5

Regular price 1.52 $ CAD
Regular price 1.45 $ CAD Sale price 1.52 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

This plow bolt has a length of 1-3/4" with a threading of 7/16-14 [Fully Threaded]. It is made of plain alloy steel and thus provides low resistance to corrosion in dry and wet environments.

The Grade 5 increases its strength against the pressure and has a tensile strength and hardness of 120,000 psi | Rockwell C25. Furthermore, it features a shear strength of 72,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ASME B18.9 | SAE J429 and comply with dimensional standards.

View full details

Specifications

Product Number BHT5-04017
Nominal Diameter 7/16-14
Length 1-3/4"
Material and/or Plating Plain Alloy Steel
System of Measurement Imperial

Thread Specifications

Threading Fully Threaded
Type UNC | Coarse
Direction Right Hand
Size 7/16-14
Shank Length 1-3/4
Fit Class 5g6g

Head Specification

Type Plow
Profile Standard
Diameter 53/64"
Height 5/16"

Neck Specifications

Form Square
Width 29/64"

Strength Specifications

Strength Grade/Class Grade 5
Tensile Strength | Hardness 120,000 psi | Rockwell C25
Shear Strength 72,000 psi
Classification ASME B18.9 | SAE J429
