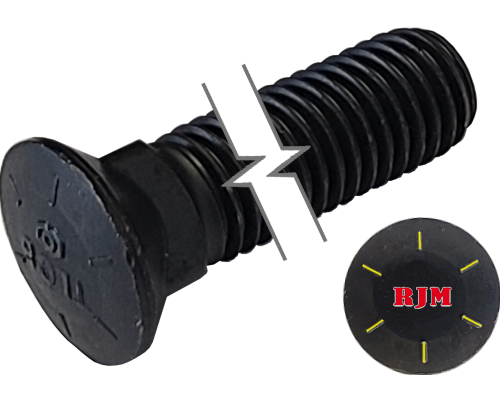

Imperial Plow Bolt Full Thread Plain Alloy Steel 5/8-11 * 2" Grade 8

Imperial Plow Bolt Full Thread Plain Alloy Steel 5/8-11 * 2" Grade 8

2.42 $ CAD
3.66 $ CAD 2.42 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download



This plow bolt has a length of 2" with a threading of 5/8-11 [Fully Threaded]. It is made of plain alloy steel and thus provides low resistance to corrosion in dry and wet environments.

The Grade 8 increases its strength against the pressure and has a tensile strength and hardness of 150,000 psi | Rockwell C33. Furthermore, it features a shear strength of 90,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ASME B18.9 | SAE J429 and comply with dimensional standards.

View full details

Specifications
Product Number BHT8-07020
Nominal Diameter 5/8-11
Length 2"
Material and/or Plating Plain Alloy Steel
System of Measurement Imperial

Thread Specifications
Threading Fully Threaded
Type UNC | Coarse
Direction Right Hand
Size 5/8-11
Shank Length 1-3/4
Fit Class 5g6g

Head Specification
Type Plow
Profile Standard
Diameter 1-3/64"
Height 5/8"
Oval Top Height 3/32
Contersink Angle 82°

Neck Specifications
Form Square
Width 41/64"

Strength Specifications
Strength Grade/Class Grade 8
Tensile Strength | Hardness 150,000 psi | Rockwell C33
Shear Strength 90,000 psi
Classification ASME B18.9 | SAE J429
