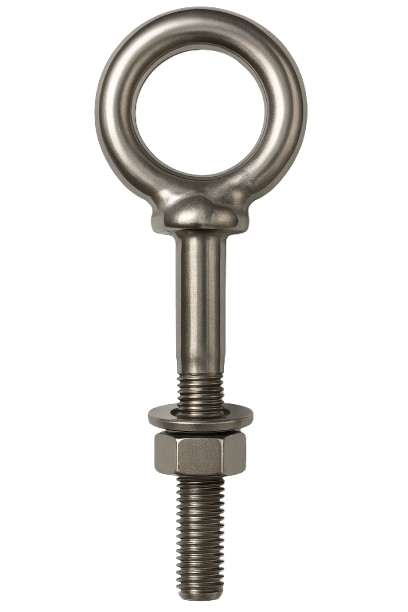

Eye Bolts Without Shoulder 3/4-10 * 2"

Eye Bolts Without Shoulder 3/4-10 * 2"

18.84 $ CAD
18.84 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Also known as machinery eyebolts.

Note: Capacities listed are for vertical lifting only.Eyebolts with shoulder can be used for angular lifting up to 45°, but the capacities will be significantly reduced. The bolts have a thread of 3/4-10 and a length of 2.

Warning: Never use to lift people or items over people. The bolt usage limit is 5000 lbs.



View full details

Specifications
Product Number BOE-08020
Application For Lifting

Thread
Size 3/4"-10
Length 2"
Length 2"
Eye Diameter 1 1/2"
Vertical Working Load Limit 5,000 lbs.
Eye Style Closed
Eye Shape Round
Material Steel
Finish Zinc Plated
Threading Fully Threaded
Movement Rigid
Body Style With Shoulder
RoHS RoHS 3 (2015/863/EU) compliant
