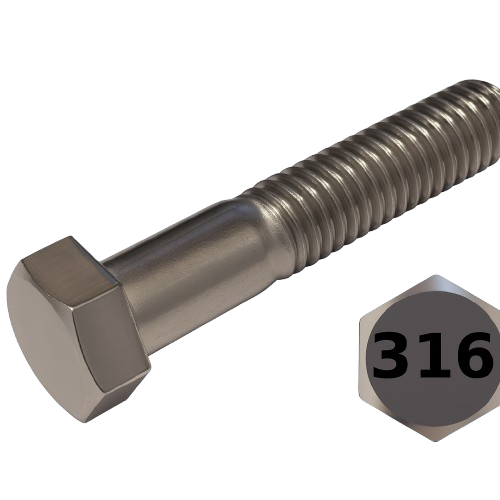

Imperial Hexagonal Bolt Partial Thread 316 Stainless Steel 3/4-10 * 7-1/2"

Imperial Hexagonal Bolt Partial Thread 316 Stainless Steel 3/4-10 * 7-1/2"

22.91 $ CAD
22.91 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download



This hexagonal bolt has a length of 7-1/2" with a threading of 3/4-10 [Partially Threaded]. It is made of 316 stainless steel, provides very high resistance to corrosion in dry and wet environments. 316 Stainless Steel is also recommended for it's high corrosion resistance in salty environement.

The 316 Stainless Steel increases its strength against the pressure and has a tensile strength and hardness of 75,000 psi | Rockwell B79. Furthermore, it features a shear strength of 45,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ASME B19.2.1 | SAE J429 and comply with dimensional standards.

View full details

Specifications
Product Number BS3-08075
Nominal Diameter 3/4-10
Length 7-1/2"
Material and/or Plating 316 Stainless Steel
System of Measurement Imperial

Thread Specifications
Threading Partially Threaded
Type UNC | Coarse
Direction Right Hand
Size 3/4-10
Shank Length 1-3/4
Shank Length 1-3/4
Min. Length 2"
Fit Class 5g6g

Head Specification
Type Hexagonal
Profile Standard
Width 1-1/8"
Height 1/2"
Drive Style External Hex

Strength Specifications
Tensile Strength | Hardness 75,000 psi | Rockwell B79
Shear Strength 45,000 psi
Classification ASME B19.2.1 | SAE J429
