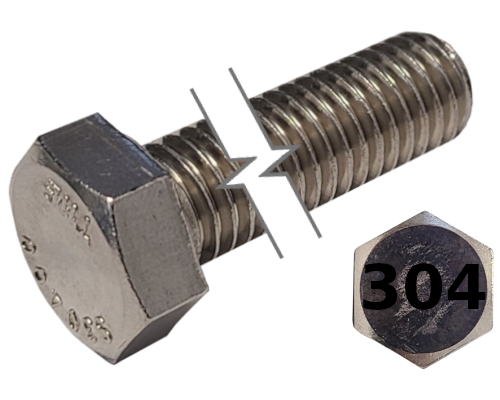

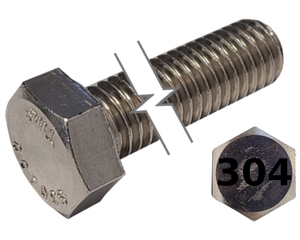

Imperial Hexagonal Bolt Full Thread 304 Stainless Steel 1/2-13 * 1"

Imperial Hexagonal Bolt Full Thread 304 Stainless Steel 1/2-13 * 1"

2.49 $ CAD
1.69 $ CAD 2.49 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download



This hexagonal bolt has a length of 1" with a threading of 1/2-13 [Fully Threaded]. It is made of 304 stainless steel, provides high resistance to corrosion in dry and wet environments.

The 304 Stainless Steel increases its strength against the pressure and has a tensile strength and hardness of 75,000 psi | Rockwell B79. Furthermore, it features a shear strength of 45,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ASME B19.2.1 | SAE J429 and comply with dimensional standards.

View full details

Specifications
Product Number BST-05010
Nominal Diameter 1/2-13
Length 1"
Material and/or Plating 304 Stainless Steel
System of Measurement Imperial

Thread Specifications
Threading Fully Threaded
Type UNC | Coarse
Direction Right Hand
Size 1/2-13
Shank Length 1-3/4
Fit Class 5g6g

Head Specification
Type Hexagonal
Profile Standard
Width 3/4"
Height 11/32"
Drive Style External Hex

Strength Specifications
Tensile Strength | Hardness 75,000 psi | Rockwell B79
Shear Strength 45,000 psi
Classification ASME B19.2.1 | SAE J429
