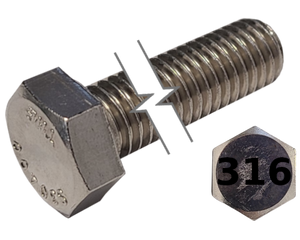

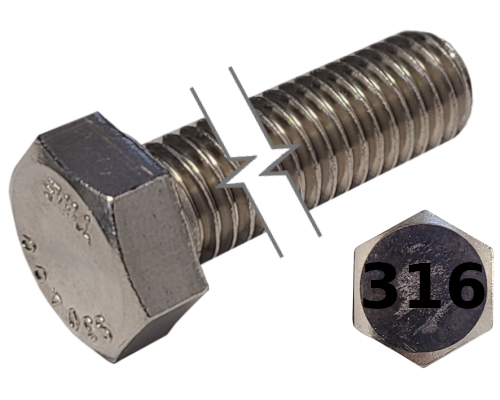

Imperial Hexagonal Bolt Full Thread 316 Stainless Steel 1/4-20 * 3/4"

Imperial Hexagonal Bolt Full Thread 316 Stainless Steel 1/4-20 * 3/4"

0.56 $ CAD
0.45 $ CAD 0.56 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download



This hexagonal bolt has a length of 3/4" with a threading of 1/4-20 [Fully Threaded]. It is made of 304 stainless steel, provides high resistance to corrosion in dry and wet environments.

The 316 Stainless Steel increases its strength against the pressure and has a tensile strength and hardness of 75,000 psi | Rockwell B79. Furthermore, it features a shear strength of 45,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ASME B19.2.1 | SAE J429 and comply with dimensional standards.

View full details

Specifications
Product Number BST3-01007
Nominal Diameter 1/4-20
Length 3/4"
Material and/or Plating 316 Stainless Steel
System of Measurement Imperial

Thread Specifications
Threading Fully Threaded
Type UNC | Coarse
Direction Right Hand
Size 1/4-20
Shank Length 1-3/4
Fit Class 5g6g

Head Specification
Type Hexagonal
Profile Standard
Width 7/16"
Height 5/32"
Drive Style External Hex

Strength Specifications
Tensile Strength | Hardness 75,000 psi | Rockwell B79
Shear Strength 45,000 psi
Classification ASME B19.2.1 | SAE J429
