Imperial Hexagonal Bolt Full Thread 9/16-12 * 1-1/4" Grade 5

Imperial Hexagonal Bolt Full Thread 9/16-12 * 1-1/4" Grade 5

Regular price 2.37 $ CAD
Regular price 1.56 $ CAD Sale price 2.37 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

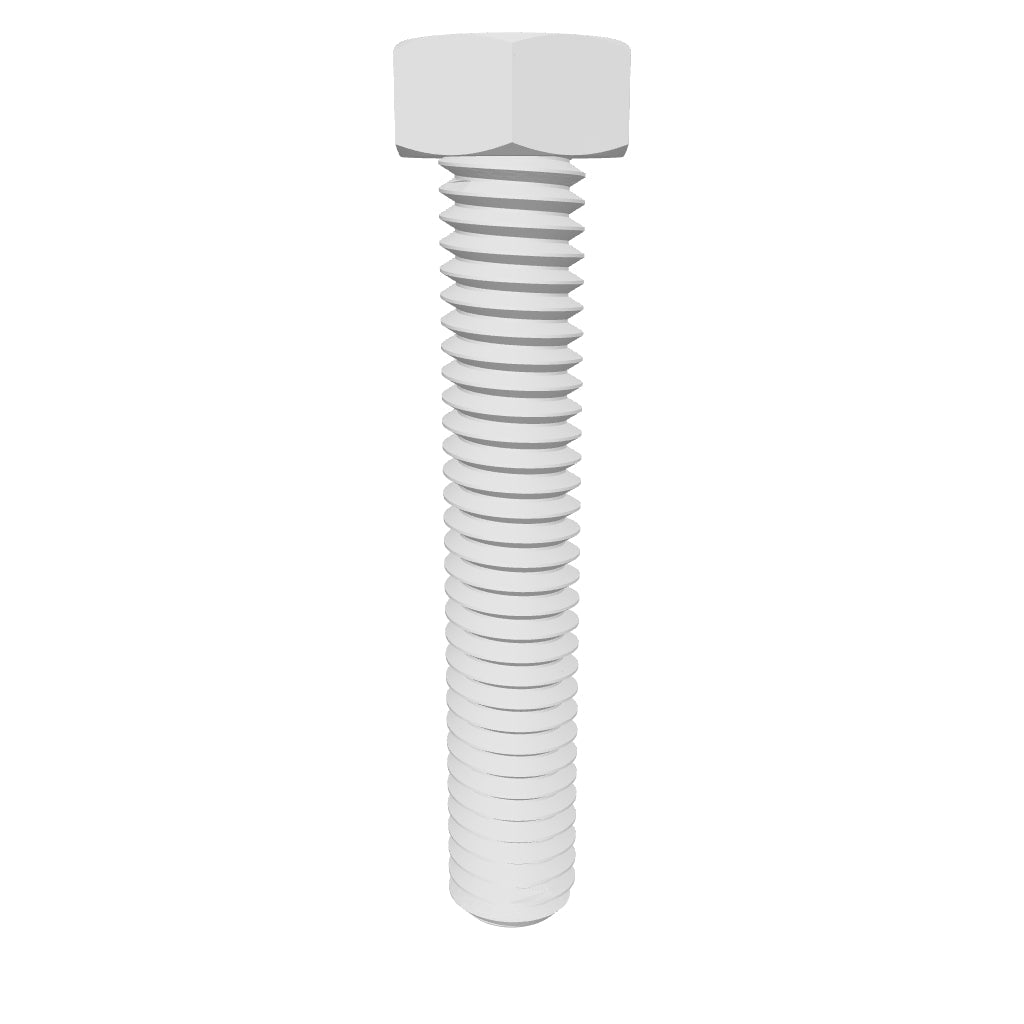

This hexagonal bolt has a length of 1-1/4" with a threading of 9/16-12 [Fully Threaded]. It is made of zinc plated and thus provide medium resistance to corrosion in both dry and wet environments.

The Grade 5 increases its strength against the pressure and has a tensile strength and hardness of 120,000 psi | Rockwell C25. Furthermore, it features a shear strength of 72,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ASME B19.2.1 | SAE J429 and comply with dimensional standards.

View full details

Specifications

Product Number BT5-06012
Nominal Diameter 9/16-12
Length 1-1/4"
Material and/or Plating Zinc Plated
System of Measurement Imperial

Thread Specifications

Threading Fully Threaded
Type UNC | Coarse
Direction Right Hand
Size 9/16-12
Shank Length 1-3/4
Fit Class 5g6g

Head Specification

Type Hexagonal
Profile Standard
Width 13/16"
Height 23/64"
Drive Style External Hex

Strength Specifications

Strength Grade/Class Grade 5
Tensile Strength | Hardness 120,000 psi | Rockwell C25
Shear Strength 72,000 psi
Classification ASME B19.2.1 | SAE J429
