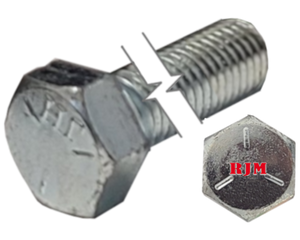

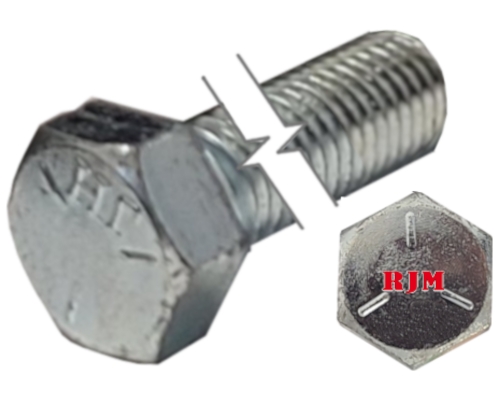

Imperial Hexagonal Bolt Full Thread 7/8-9 * 2-1/2" Grade 5

Imperial Hexagonal Bolt Full Thread 7/8-9 * 2-1/2" Grade 5

8.82 $ CAD
5.53 $ CAD 8.82 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

This hexagonal bolt has a length of 2-1/2" with a threading of 7/8-9 [Fully Threaded]. It is made of zinc plated and thus provide medium resistance to corrosion in both dry and wet environments.

The Grade 5 increases its strength against the pressure and has a tensile strength and hardness of 120,000 psi | Rockwell C25. Furthermore, it features a shear strength of 72,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ASME B19.2.1 | SAE J429 and comply with dimensional standards.

View full details

Specifications
Product Number BT5-09025
Nominal Diameter 7/8-9
Length 2-1/2"
Material and/or Plating Zinc Plated
System of Measurement Imperial

Thread Specifications
Threading Fully Threaded
Type UNC | Coarse
Direction Right Hand
Size 7/8-9
Shank Length 1-3/4
Fit Class 5g6g

Head Specification
Type Hexagonal
Profile Standard
Width 1-5/16"
Height 9/16"
Drive Style External Hex

Strength Specifications
Strength Grade/Class Grade 5
Tensile Strength | Hardness 120,000 psi | Rockwell C25
Shear Strength 72,000 psi
Classification ASME B19.2.1 | SAE J429
