Imperial Hexagonal Bolt Full Thread 9/16-12 * 1-1/2" Grade 8

Imperial Hexagonal Bolt Full Thread 9/16-12 * 1-1/2" Grade 8

3.18 $ CAD
1.68 $ CAD 3.18 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

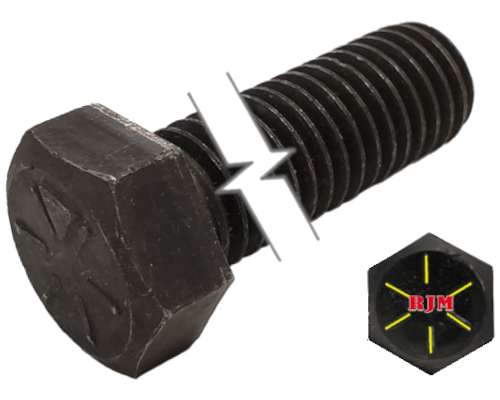

This hexagonal bolt has a length of 1-1/2" with a threading of 9/16-12 [Fully Threaded]. It is made of plain alloy steel and thus provides low resistance to corrosion in dry and wet environments.

The Grade 8 increases its strength against the pressure and has a tensile strength and hardness of 150,000 psi | Rockwell C33. Furthermore, it features a shear strength of 90,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ASME B19.2.1 | SAE J429 and comply with dimensional standards.

View full details

Specifications
Product Number BT8-06015-N
Nominal Diameter 9/16-12
Length 1-1/2"
Material and/or Plating Plain Alloy Steel
System of Measurement Imperial

Thread Specifications
Threading Fully Threaded
Type UNC | Coarse
Direction Right Hand
Size 9/16-12
Shank Length 1-3/4
Fit Class 5g6g

Head Specification
Type Hexagonal
Profile Standard
Width 13/16"
Height 23/64"
Drive Style External Hex

Strength Specifications
Strength Grade/Class Grade 8
Tensile Strength | Hardness 150,000 psi | Rockwell C33
Shear Strength 90,000 psi
Classification ASME B19.2.1 | SAE J429
