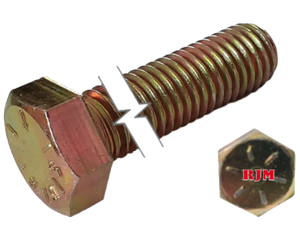

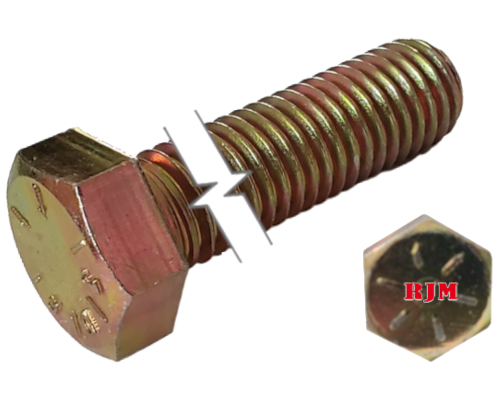

Imperial Hexagonal Bolt Fine And Full Thread 5/8-18 * 2" Grade 8

Imperial Hexagonal Bolt Fine And Full Thread 5/8-18 * 2" Grade 8

3.42 $ CAD
2.61 $ CAD 3.42 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download



This hexagonal bolt has a length of 2" with a threading of 5/8-18 [Fully Threaded]. It is made of yellow zinc plated and thus provide medium resistance to corrosion in dry environments and low resistance in wet environments, but Yellow Zinc provide a higher corrosion resistance than regular zinc.

The Grade 8 increases its strength against the pressure and has a tensile strength and hardness of 150,000 psi | Rockwell C33. Furthermore, it features a shear strength of 90,000 psi.

UNF | Fine threads are an industry standard. These bolts are classified as ASME B19.2.1 | SAE J429 and comply with dimensional standards.

View full details

Specifications
Product Number BTF8-07020
Nominal Diameter 5/8-18
Length 2"
Material and/or Plating Yellow Zinc Plated
System of Measurement Imperial

Thread Specifications
Threading Fully Threaded
Type UNF | Fine
Direction Right Hand
Size 5/8-18
Shank Length 1-3/4
Fit Class 5g6g

Head Specification
Type Hexagonal
Profile Standard
Width 15/16"
Height 13/32"
Drive Style External Hex

Strength Specifications
Strength Grade/Class Grade 8
Tensile Strength | Hardness 150,000 psi | Rockwell C33
Shear Strength 90,000 psi
Classification ASME B19.2.1 | SAE J429
