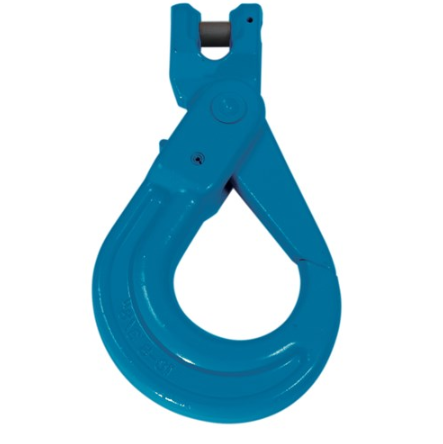

Clevis Hook bleu Painted Alloy Steel 1/4 Grade 100

Clevis Hook bleu Painted Alloy Steel 1/4 Grade 100

39.46 $ CAD
39.46 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download



For a more secure connection than standard hooks, the latch locks closed when a load is applied. The hooks are colored bleu.

High-Strength Grade 100. hooks are approximately 20% stronger than Grade 80 hooks when used with chain of the same grade. The hook has a diameter of 1/4.

Note: Capacities are for vertical lifting only.

View full details

Specifications
Product Number CRO-01100-CH
Application For Lifting
Grade 100
Material Alloy Steel
Finish Powder Coated
For Chain Trade Size 1/4, 9/32, 5/16
Capacity 5 700

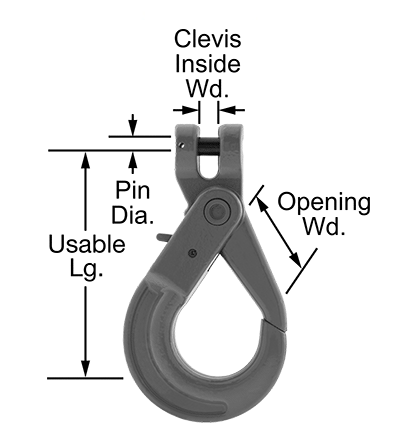

Hook
Opening Width 1 1/2"
Usable Length 5 5/16"
Pin Diameter 3/8"
Clevis Inside Width 3/8"
Color Blue
Fabrication Forged
Latch Type Locking
Locking Latch Type Load
Maximum Temperature 400° F
Specifications Met ASME B30.10
For Use With Chain, Wire Rope
Attachment Type Eye
RoHS Not Compliant
REACH REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
