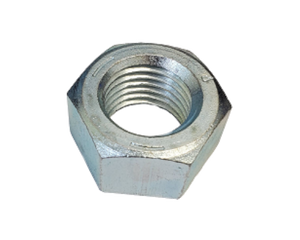

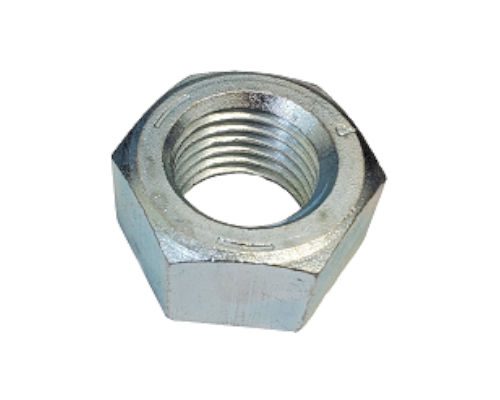

Imperial Hexagonal Nut zinc Plated 3/8-16 Grade 5

Imperial Hexagonal Nut zinc Plated 3/8-16 Grade 5

0.12 $ CAD
0.14 $ CAD 0.12 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download



This hexagonal nut fit a threading of 3/8-16. It is made of zinc plated and thus provide medium resistance to corrosion in both dry and wet environments.

The Grade 5 increases its strength against the pressure and has a tensile strength and hardness of 120,000 psi | Rockwell C25. Furthermore, it features a shear strength of 72,000 psi.

UNC | Coarse threads are an industry standard. These nuts are classified as ASME B18.2.2 and comply with dimensional standards.

View full details

Specifications
Product Number E5-03000
Nominal Diameter 3/8-16
Material and/or Plating Zinc Plated
System of Measurement Imperial

Thread Specifications
Type UNC | Coarse
Direction Right Hand
Size 3/8-16
Fit Class 5g6g

Nut Specification
Type Hexagonal
Profile Standard
Diameter 9/16"
Height 21/64"
Drive Style External Hex

Strength Specifications
Strength Grade/Class Grade 5
Tensile Strength | Hardness 120,000 psi | Rockwell C25
Shear Strength 72,000 psi
Classification ASME B18.2.2
